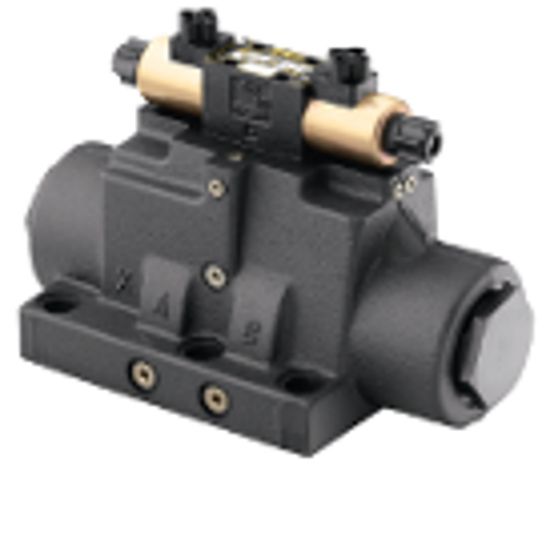

Parker D31DW001C1NJP3A. - Pilot Operated Directional Control Valve - D31DW, D31VW Series

Parker’s D31 directional control valves are 5-chamber, pilot operated, solenoid controlled valves.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. D31DW001C1NJP3A.

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Maximum Operating Temperature	140
Maximum Operating Pressure	5000	Power Supply Voltage	24
Division	Hydraulic Valve Systems Division	Weight	12
Minimum Operating Temperature	-4	Maximum Flow Rate	40
Actuation Type	Hydraulic Pressure	Mounting Type	Subplate
Body Material	Gray Iron	Options	Pilot Choke Meter-out
Spool Code	4-Way	Pilot Inlet / Drain Locations	Internal Pilot / External Drain
Spool Position	3-Position	Valve Type	Pilot Operated Directional Control Valve
Additional Options	Consult catalog for additional features.	Connection Type	DIN with Plug
Solenoid Option	High Watt (standard)	Coil Specifications Met	Omit
Mounting Type	Subplate	Size	NFPA D05HE, CETOP 5H, DIN NG10M D03 Pilot, ISO Port
Maximum Flow Rate	30 gal/min	Maximum Operating Pressure	5712 psi/ 345 bar
