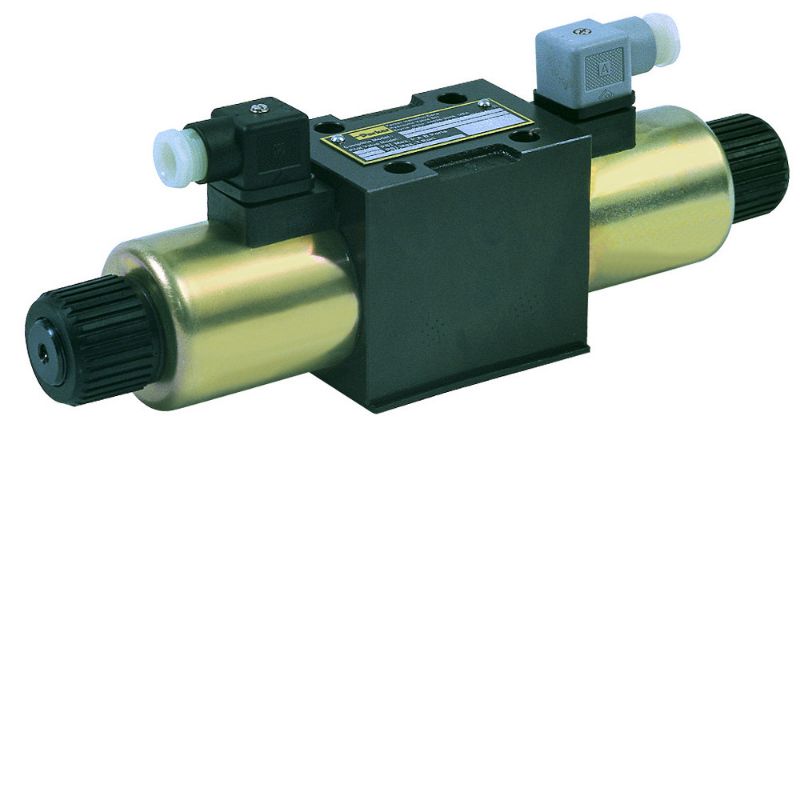

Parker D1FWE01FCVKP0 - OBSOLETE: Proportional Directional Control Valve - D1FW/D3FW Series

This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. D1FWE01FCVKP0

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Spool Position	4-Way	Spool Type	10% Overlap
Weight	5.5	Division	Hydraulic Valve Systems Division
Body Material	Gray Iron	Maximum Operating Temperature	140
Additional Options	Consult catalog for additional features.	Minimum Operating Temperature	32
Actuation Type	Hydraulic Pressure	Maximum Flow Rate	12.5
Valve Type	Direct Operated Proportional Directional Control Valve	Seal Material	Fluorocarbon
Maximum Operating Pressure	4500	Solenoid Option	DIN with Plug
Input Voltage	12.0	Mounting Type	Manifold
Size	NG 6, CETOP 3	Flow Rate (gpm)	4
Maximum Operating Pressure	4500 PSI

Product resources

Literature and Reference Materials

Proportional Directional Control Valve Catalog - D1FW/D3FW (North America) (PDF)
