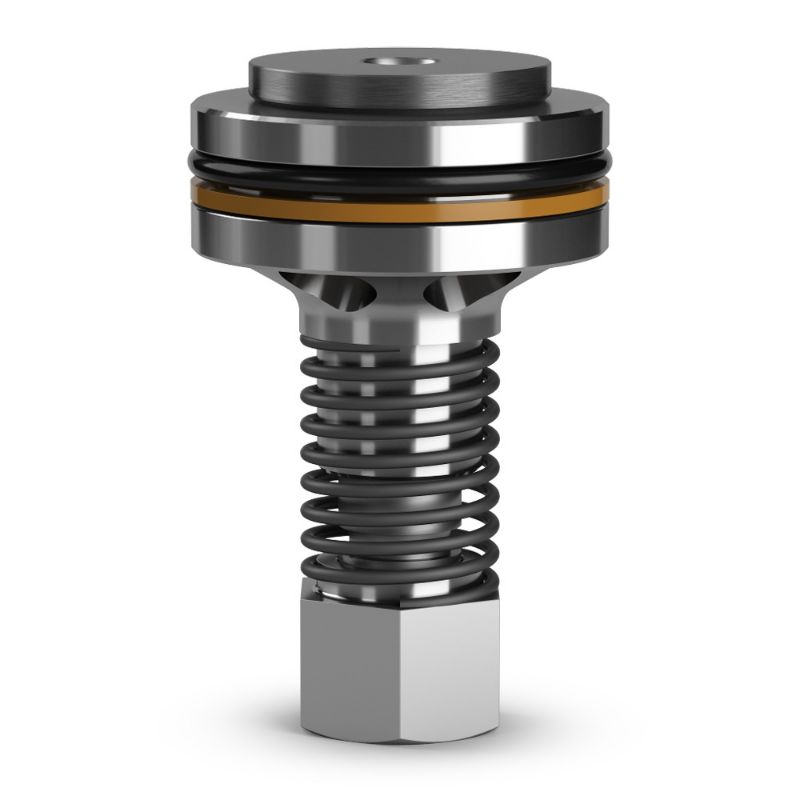

Picture of Parker D1B125-1.0N - Insert Check Valves

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker D1B125-1.0N - Insert Check Valves

Parker’s ball and poppet style check valves are cartridges designed to be inserted inside manifolds and can handle flow up to 500 lpm (132 gpm) and pressures at 420 bar (6,000 psi) for circuit optimization and space savings.
Availability:
Quote Required
Partner Available:1 Limited Stock
Brand Parker
Part No. D1B125-1.0N
$118.50
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEASeal MaterialNitrile
Connection Sizen/aConnection Typen/a
Body Materialn/aMaximum Operating Pressure6000 psi
DivisionHydraulic Cartridge Systems DivisionFor Fluid TypeMineral-based Hydraulic Fluids
Valve MaterialSteel (all parts)Filter Efficiency RatingSAE Class 4
Maximum Kinematic Viscosity45-2000 SSU (6 to 420 cSt)Maximum Operating Temperature121 °C
Minimum Operating Temperature-34 °CActuation TypePressure Sensing
DivisionMobile Hydraulic Systems Division EuropeOperation TypeAutomatic
Operating Temperature-30 to 250 °FMaximum Inlet Pressure Rating420 bar
Leak Raten/aWeight0.6 kg
Cracking Pressure15 psiConfigurationInsert
Mounting TypeInside ManifoldsFlow Direction2-1 Checked
Flow Rate132 Gal/minMaximum Flow Rate132 Gal/min
FunctionCheckCavity Size2C
Seal MaterialNitrileMaximum Inlet Pressure Rating6000 PSI, 420 BAR
Cracking Pressure15 PSI, 1 BARFlow Rate132 GAL/MIN, 500 L/MIN
Product resources

Literature and Reference Materials
