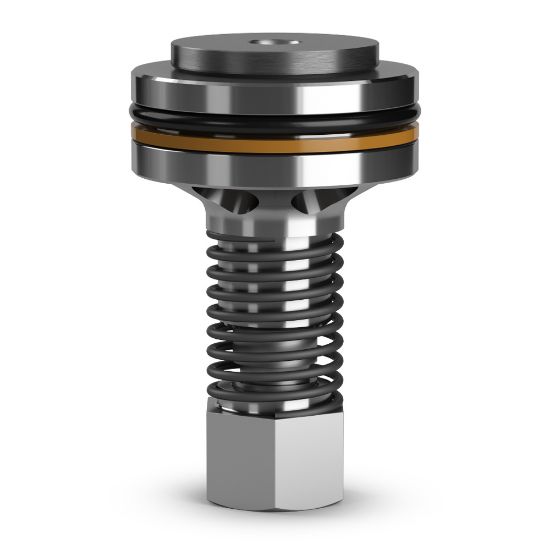

Parker D1B125-0.0V - Insert Check Valves

Parker’s ball and poppet style check valves are cartridges designed to be inserted inside manifolds and can handle flow up to 500 lpm (132 gpm) and pressures at 420 bar (6,000 psi) for circuit optimization and space savings.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. D1B125-0.0V

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Connection Size	n/a	Connection Type	n/a
Maximum Operating Temperature	400	Seal Material	Fluorocarbon
Body Material	n/a	Division	Hydraulic Valve Systems Division
For Fluid Type	Synthetic Hydraulic Fluids	Valve Material	Steel (all parts)
Filter Efficiency Rating	SAE Class 4	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-15	Maximum Operating Pressure	6000
Flow Rate	500	Actuation Type	Pressure Sensing
Division	Mobile Hydraulic Systems Division Europe	Operation Type	Automatic
Maximum Inlet Pressure Rating	6000	Weight	0.6
Operating Temperature	-26 to 204	Flow Direction	1-2 Free Flow
Configuration	Insert	Mounting Type	Inside Manifolds
Cracking Pressure	0	Maximum Flow Rate	132
Function	Check	Leak Rate	3
Cavity Size	2C	Seal Material	Fluorocarbon
Maximum Inlet Pressure Rating	6000 PSI, 420 BAR	Cracking Pressure	0 PSI, 0 BAR
Flow Rate	132 GAL/MIN, 500 L/MIN
