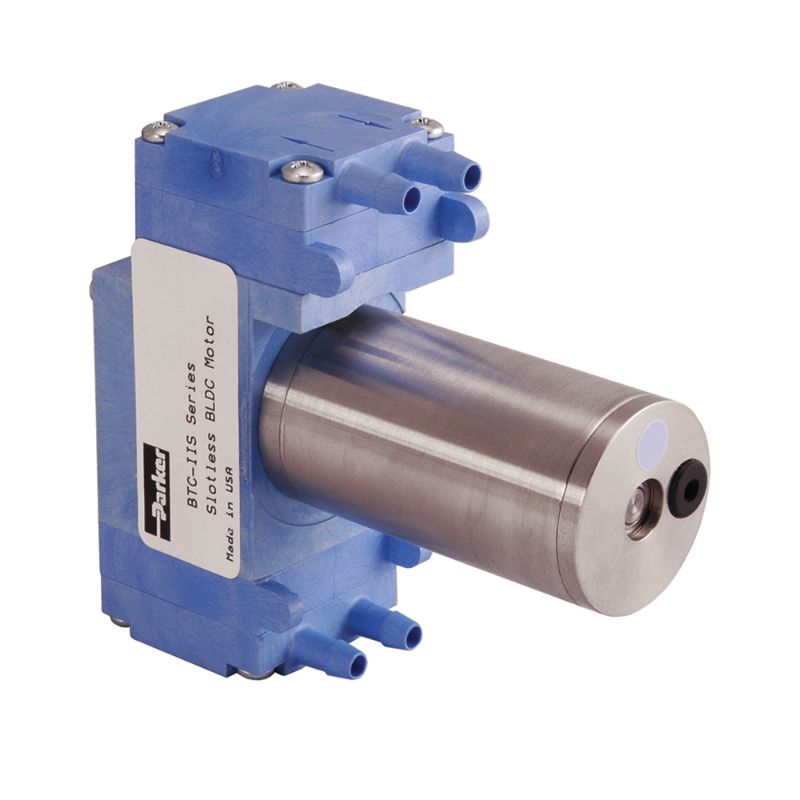

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker D1024-22-01 - BTC Single and Dual Head Miniature Diaphragm Pump (Gas)

BTC is not recommended for new designs. The BTX-Connect and BTX-Brush series have succeeded the BTC with reduced weight, reduced vibration, added motor features, and an increased life rating.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. D1024-22-01

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Diaphragm Material	EPDM	Tube Type	Parallel Tubing Connection
Division	Precision Fluidics Division	Rated Speed	3150 RPM
Height	2.98 inch	Body Material	Vectra LCP
Length	3.22 inch	Motor Type	Brushless DC
Operational Life	>10000 Hours	Vacuum Pressure Rating	-533.4 mm-Hg
Motor Control Option	No Control Input (Power Input Only)	Weight	250.0 g
Pressure Rating	0.0 psi	Width	1.18 inch
Pump Size	Dual Head, Up to 11 L/min	Part Type	Active
Input Voltage	24	Pump Type	Vacuum Only (High Flow)
Free Flow Rate	8.5 L/min	Motor Option	>10k Hour, High Efficiency Slotless BLDC, Up to 9.5 L/min
