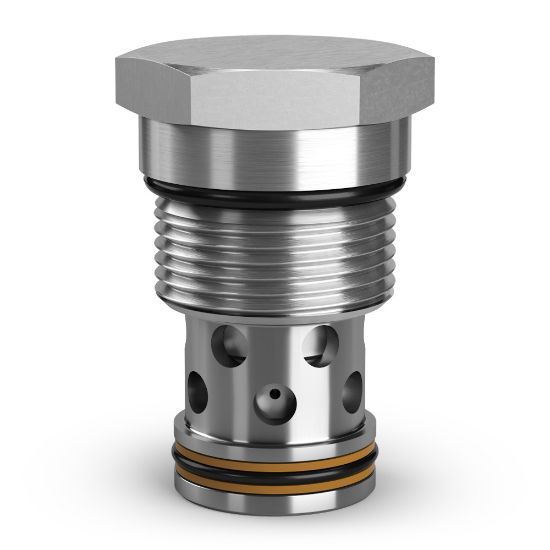

Picture of Parker D06C2-6.9V - Side to Nose Check Valves

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker D06C2-6.9V - Side to Nose Check Valves

Parker check valves designed for “reverse” flow from the side port (port 2) to the end port (port 1) from 19 to 500 lpm (5 to 132 gpm) and pressures up to 420 bar (6,000 psi), allowing manifold space optimization while achieving superior performance.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. D06C2-6.9V
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Maximum Operating Temperature400Seal MaterialFluorocarbon
Body Materialn/aDivisionHydraulic Valve Systems Division
For Fluid TypeSynthetic Hydraulic FluidsValve MaterialSteel (all parts)
Operating Temperature-15 to 400Filter Efficiency RatingSAE Class 4
Maximum Kinematic Viscosity45-2000 SSU (6 to 420 cSt)Minimum Operating Temperature-15
Weight0.57Actuation TypePressure Sensing
DivisionMobile Hydraulic Systems Division EuropeMaximum Inlet Pressure Rating6000
Cavity SizeC16-2Installation Torque74
Cracking Pressure100Flow Direction2-1 Free Flow
FunctionSide to Nose CheckLeak Rate3 drops/min @ 6000 Psi (420 bar)
Maximum Flow Rate132Flow Rate132
Maximum Operating Pressure420Minimum Operating Pressure6000
Seal MaterialFluorocarbonCracking Pressure100 PSI, 6.9 BAR
Maximum Flow Rate132 GAL/MIN, 500 L/MIN
Product resources

Literature and Reference Materials
