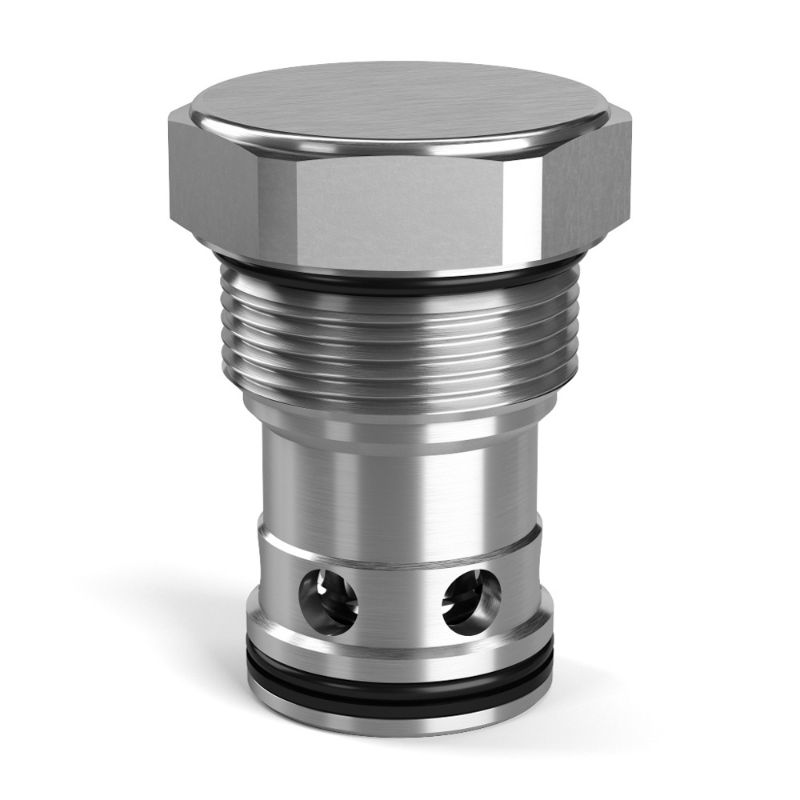

Picture of Parker CVH201P - Standard Check Valves

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker CVH201P - Standard Check Valves

Capable of flows from 3.5 to 303 lpm (0.9 to 80 gpm) and pressure as high as 420 bar (6,000 psi), Parker’s poppet and ball style check valves have a simple and robust design which are used to block flow in one direction, and allow flow in the opposite.
Availability:
Quote Required
Partner Available:25 In Stock
Brand Parker
Part No. CVH201P
$109.69
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEASeal MaterialNitrile
Flow Raten/aBody Materialn/a
DivisionHydraulic Cartridge Systems DivisionDivisionHydraulic Systems Division
Leak Rate5For Fluid TypeMineral-based Hydraulic Fluids
Valve MaterialSteelFilter Efficiency RatingSAE Class 4
Maximum Kinematic Viscosity45-2000 SSU (6 to 420 cSt)Maximum Operating Temperature121 °C
Maximum Flow Rate303 L/minMinimum Operating Temperature-34 °C
Maximum Operating Pressure350 barActuation TypePressure Sensing
Operating Temperature-34 to 121 °CMaximum Inlet Pressure Rating350 bar
Weight0.27 kgCavity SizeC20-2
Cracking Pressure0.3 barFlow Direction2-1 Checked
FunctionStandard CheckInstallation Torque98 lb-ft
Seal MaterialNitrileMaximum Flow Rate80 GAL/MIN, 303 L/MIN
Cracking Pressure5 PSI, 0.3 BAR
