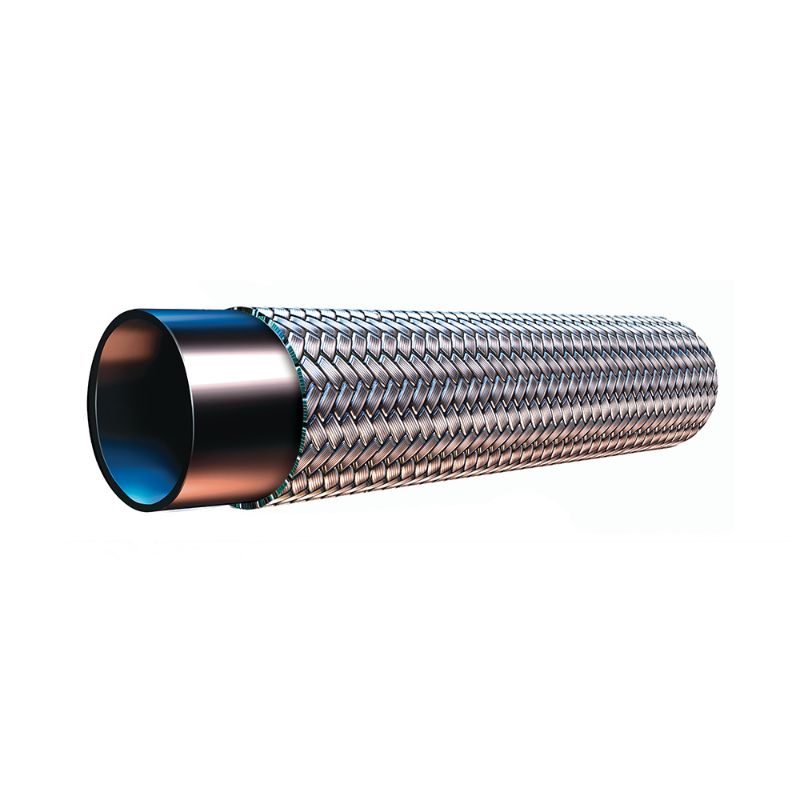

Parker 929B-12 - PTFE Hose - 929B

PTFE Hose 929B features a heavier wall for improved kink resistance and enhanced resistance to gas permeation over 919/919B hose. Use in a wide temperature range from -100°F to +450°F.

AFP Availability:	Quote Required
Partner Available:	340 In Stock

Brand Parker

Part No. 929B-12

$24.31/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Product Style	Static Dissipative
Minimum Operating Temperature	-73 °C	Product Type	PTFE Hose
Cover Material	n/a	Minimum Bend Radius	6-1/2 inch
Application	Adhesive Dispensing	Maximum Operating Temperature	232 °C
Media	Air	Size	-12
Hose Inner Tube Material	Polytetrafluoroethylene (PTFE) Static Dissipative	Design Factor	4:1
Compatible Fitting	91N Series	Outside Diameter	0.79 inch
Inside Diameter	5/8 inch	Vacuum Pressure Rating	304.8 mm-Hg
Division	Parflex Division	Specifications Met	SAE 100R1, Type 4B
Hose Reinforcement Material	Braid of 304 Stainless Steel	Weight	0.28 kg/m
Maximum Operating Pressure	1200 psi	Hose Style	Static Dissipative PTFE
Hose I.D. (inch)	1/2
