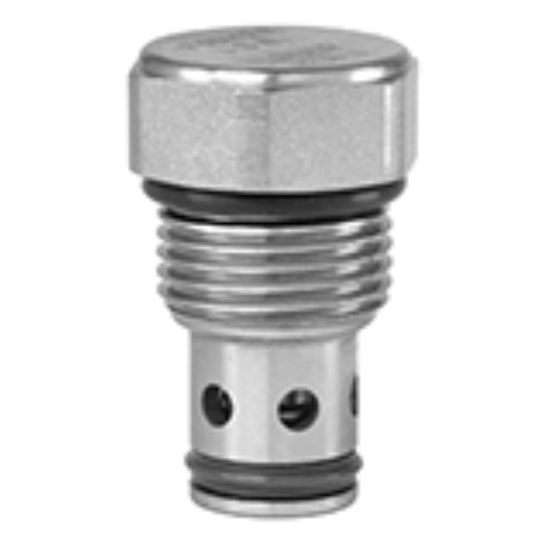

Picture of Parker CVH104PV - Side to Nose Check Valves

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker CVH104PV - Side to Nose Check Valves

Parker check valves designed for “reverse” flow from the side port (port 2) to the end port (port 1) from 19 to 500 lpm (5 to 132 gpm) and pressures up to 420 bar (6,000 psi), allowing manifold space optimization while achieving superior performance.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. CVH104PV
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Maximum Operating Temperature204 °CSeal MaterialFluorocarbon
Body Materialn/aDivisionHydraulic Cartridge Systems Division
DivisionHydraulic Systems DivisionFor Fluid TypeSynthetic Hydraulic Fluids
Valve MaterialSteelOperating Temperature-15 to 400 °F
Filter Efficiency RatingSAE Class 4Maximum Kinematic Viscosity45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature-26 °CMaximum Operating Pressure350 bar
Maximum Flow Rate5 Gal/minActuation TypePressure Sensing
Cavity SizeC10-2Maximum Inlet Pressure Rating350 bar
Flow Rate34 L/minWeight0.18 lb
Leak Rate2FunctionSide to Nose Check
Flow Direction1-2 CheckedCracking Pressure45 psi
Installation Torque69 to 75 NmMinimum Operating Pressure5000 psi
Seal MaterialFluorocarbonCracking Pressure45 PSI, 3.1 BAR
Maximum Flow Rate5 GAL/MIN, 34 L/MIN
