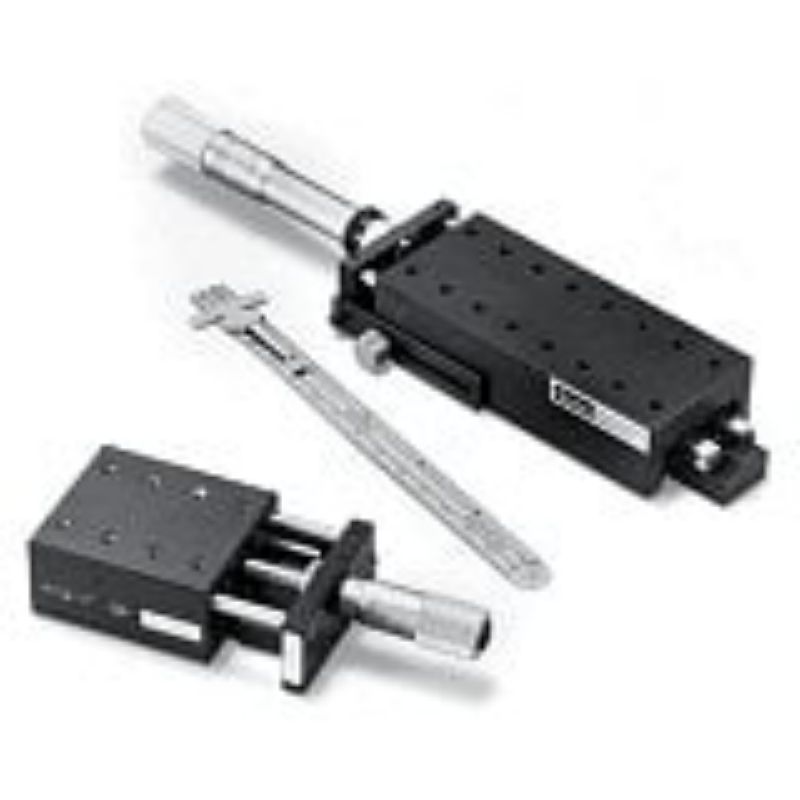

Parker CR4526 - Manual Driven, Cross Roller Bearing Guided, Standard Linear Positioning Stages - CR4000 Series

CR4000-series crossed roller bearing guided manual linear positioners have an integral drive mechanism and offer travels up to 2", payloads up to 251 lbs, plus exceptional smoothness, extremely low friction and a very good straightness/flatness accuracy

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. CR4526

$0.01

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Product Type	Linear Stage
Bearing Type	Cross Roller	Load Capacity	150 to 499 lb
Maximum Travel	0.5 inch	Product Series	CR4000 Series
Width	2.62 inch	Division	Electronic Motion and Controls Division
Mounting Option	English Model	Number of Axes	2
Drive Train Type	Imperial Micrometer	Payload (lbs)	111
Axis Count	2	Travel (mm)	(imperial)
Travel (inch)	0.5	Drive Mechanism	Imperial Micrometer
Type	English Model / Center Drive / with Aperture
