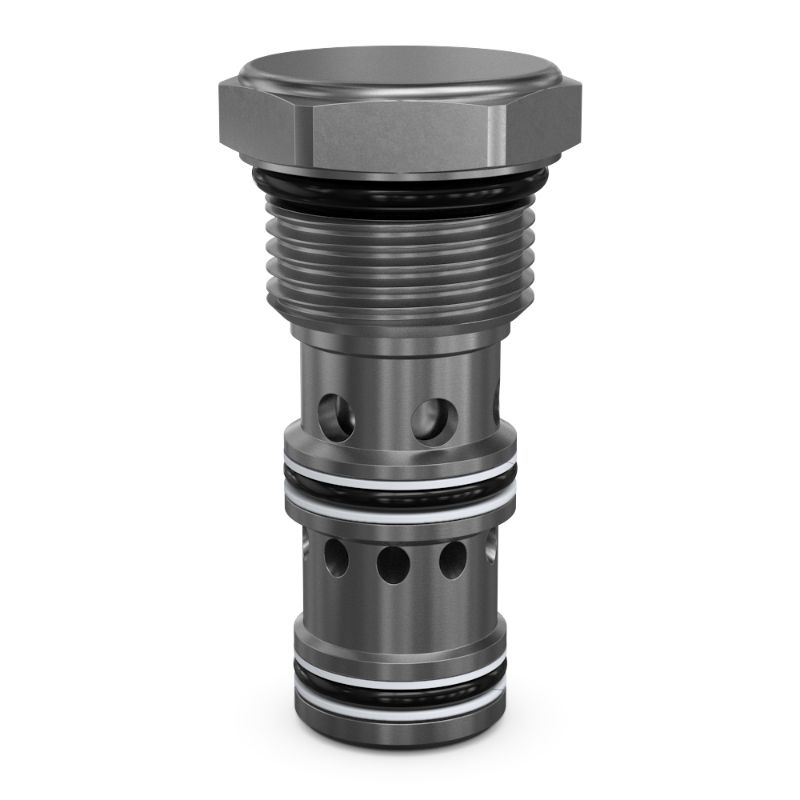

Parker CPH124P - Single Pilot Operated, Pilot to Open Check Valves

Parker’s P.O. check valve assemblies allow flow up to 150 lpm (40 gpm) with pressures up to 420 bar (6,000 psi). Return flow can be enable by an external pilot supply, which shifts the internal poppet into an open position.

Availability:	Quote Required
Partner Available:	37 In Stock

Brand Parker

Part No. CPH124P

$79.13

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Hydraulic Systems Division
Seal Material	Nitrile	Maximum Operating Temperature	250 °F
Maximum Inlet Pressure Rating	5000 psi	Division	Hydraulic Cartridge Systems Division
Maximum Flow Rate	75 L/min	Body Material	n/a
Pilot Location	1	Operating Temperature	-30 to 250 °F
Minimum Operating Temperature	-30 °F	Actuation Type	Pilot Operated
Cracking Pressure	1.7 bar	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Function	Single Pilot to Open Check	Installation Torque	76 Nm
Flow Direction	2-3 Free Flow	Flow Rate	n/a
For Fluid Type	Mineral-based Hydraulic Fluids	Weight	0.44 lb
Valve Material	Hardened Steel	Pilot Pressure Ratio	3:1
Maximum Operating Pressure	5000 psi	Leak Rate	5
Filter Efficiency Rating	SAE Class 4	Cavity Size	C12-3
Cracking Pressure	25 PSI, 1.7 BAR	Seal Material	Nitrile
Maximum Flow Rate	20 GAL/MIN, 75 L/MIN
