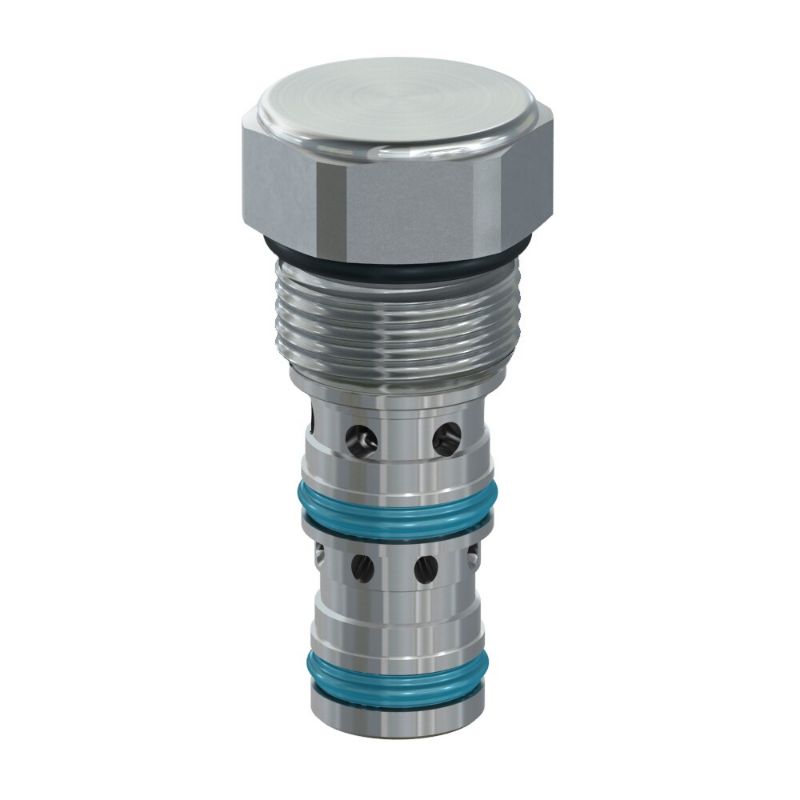

Parker CPH104P15 - Single Pilot Operated, Pilot to Open Check Valves

Parker’s P.O. check valve assemblies allow flow up to 150 lpm (40 gpm) with pressures up to 420 bar (6,000 psi). Return flow can be enable by an external pilot supply, which shifts the internal poppet into an open position.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. CPH104P15

$58.00/each

Products specifications

Attribute name	Attribute value
UOM	EA	Flow Rate	n/a
Actuation Type	Pilot Operated	Division	Hydraulic Systems Division
Minimum Operating Temperature	-37 °C	Pilot Location	1
Installation Torque	65 Nm	Flow Direction	2-3 Free Flow
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Maximum Inlet Pressure Rating	350 bar
Cracking Pressure	1 bar	Weight	0.2 lb
Maximum Operating Pressure	5000 psi	Seal Material	D-Ring (Standard)
Filter Efficiency Rating	ISO 4406 18/16/13	Valve Material	Steel
Maximum Operating Temperature	93 °C	Cavity Size	C10-3
Division	Hydraulic Cartridge Systems Division	For Fluid Type	Mineral-based Hydraulic Fluids
Function	Single Pilot to Open Check	Pilot Pressure Ratio	4:1
Operating Temperature	-37 to 93 °C	Body Material	n/a
Maximum Flow Rate	30 L/min	Leak Rate	2
Cracking Pressure	15 PSI, 1 BAR	Seal Material	D-Ring (Standard)
Maximum Flow Rate	8 GAL/MIN, 30 L/MIN
