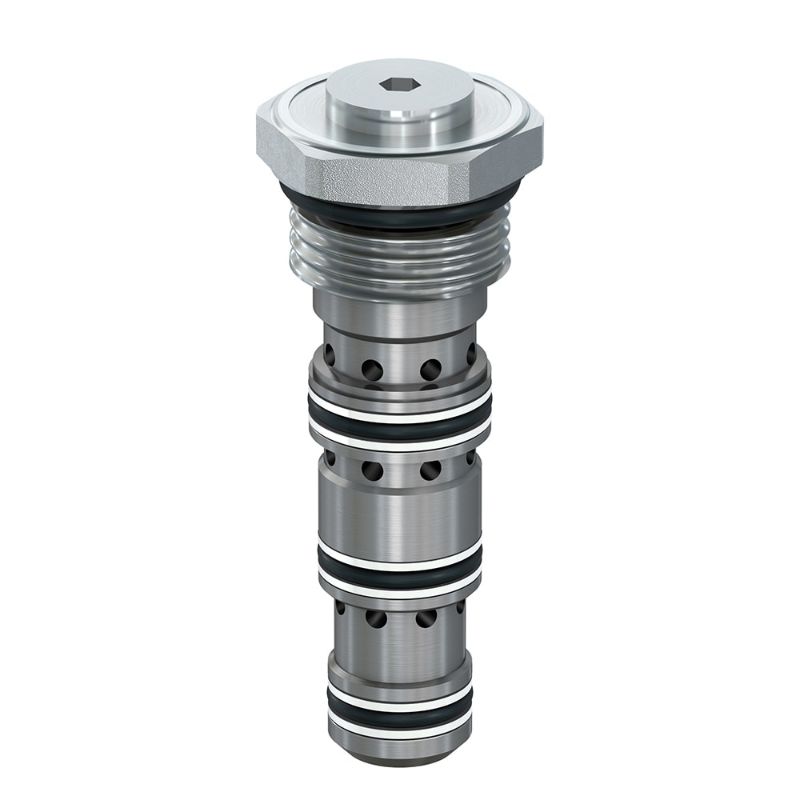

Parker CPD084P - Cartridge Style Dual Pilot Operated Check Valves

Designed to lock hydraulic circuits or actuators in rest conditions, Parker’s dual pilot operated check valves allow bidirectional flow ranging up to 19 lpm (5 gpm) and pressure up to 207 bar (3,000 psi) after pilot pressure is supplied.

Availability:	Quote Required
Partner Available:	15 In Stock

Brand Parker

Part No. CPD084P

$72.75

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Operating Temperature	-34 to 121 °C
Flow Rate	5 Gal/min	Filter Efficiency Rating	ISO 4406 18/16/13
Maximum Operating Temperature	121 °C	Configuration	Cartridge Style
For Fluid Type	Mineral-based Hydraulic Fluids	Actuation Type	Pilot
Mounting Type	Screw-in Cartridge	Pilot Pressure Ratio	3:1
Leak Rate	5	Weight	0.05 kg
Maximum Operating Pressure	207 bar	Maximum Flow Rate	19 Gal/min
Cracking Pressure	n/a	Cavity Size	C08-4
Function	Dual Pilot Operated	Division	Hydraulic Systems Division
Seal Material	Nitrile	Flow Direction	2-1 Free Flow
Body Material	n/a	Connection Type	n/a
Maximum Inlet Pressure Rating	3000 psi	Minimum Operating Temperature	-30 °F
Connection Size	n/a	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Valve Material	Steel	Operation Type	Pilot Operated
Installation Torque	15 lb-ft	Seal Material	Nitrile
Flow Rate	5 GAL/MIN, 19 L/MIN
