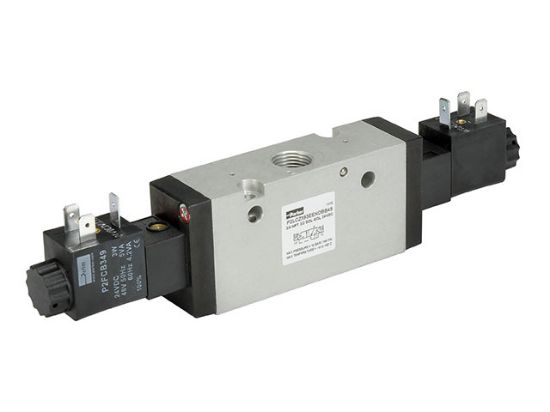

Parker P2LBZ392EENDBB49 - Viking Lite Series Double Solenoid 3-way 2-position Valve

Double Solenoid, 3-way, 2-position

Availability:	Quote Required
Partner Available:	6 In Stock

Brand Parker

Part No. P2LBZ392EENDBB49

$94.47

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Override Type	Non-locking
CV Factor	1.5	Solenoid Voltage	24VDC
UOM	EA	Pkg Qty	1
Pilot Supply	Internal	Port	1/4 NPT
Operator Type Detail	Double	Parker Group	Automation
Port	1/4 NPT	Solenoid Connection	22mm Rectangular 3-Pin – Type B Industrial (Use with Enclosure “B”)
Valve Positions	2-position	Valve Passages	3-way
Pilot Supply	Internal	Operator Type Detail	Double
Parker Division	Pneumatic	CV Factor	1.5
Solenoid Voltage	24VDC	Override Type	Non-locking
Series	Viking Lite	Operating Temperature	14°F to 122°F (-10°C to 50°C)
Operator Type	Solenoid	Supply Pressure Range	22 to 145 PSIG (1.5 to 10 bar)
Trade Name	Viking Lite	Pneumatic Valve Type	Inline Valve
Port Inch/BSP	NPT
