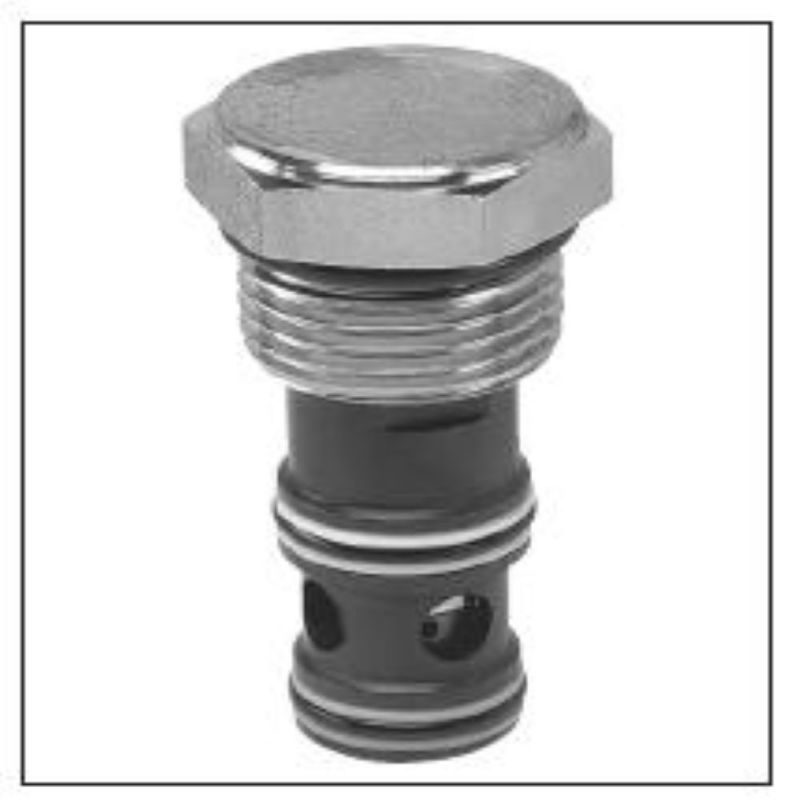

Picture of Parker CPC101P50V - Single Pilot Operated, Pilot to Close Check Valves

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker CPC101P50V - Single Pilot Operated, Pilot to Close Check Valves

Pilot-to-close check valves operate as standard check valves, but block flow completely when a pilot signal is supplied; capable of flows up to 38 lpm (10 gpm) and pressures up to 240 bar (3,500 psi).
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. CPC101P50V
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
DivisionHydraulic Systems DivisionLeak Rate15 drops/min @ 3500 Psi (240 bar)
Weight0.31Body Materialn/a
Seal MaterialFluorocarbonMaximum Operating Temperature400
Installation Torque16Maximum Inlet Pressure Rating3500
Actuation TypePilot OperatedCavity SizeC10-3
Minimum Operating Temperature-15Pilot Pressure Ratio2:1
Maximum Kinematic Viscosity45-2000 SSU (6 to 420 cSt)Valve MaterialSteel (all parts)
Maximum Flow Rate10Pilot Location3
DivisionHydraulic Valve Systems DivisionOperating Temperature-15 to 400
Cracking Pressure50For Fluid TypeSynthetic Hydraulic Fluids
Filter Efficiency RatingSAE Class 4Flow Direction1-2 Free Flow
Maximum Operating Pressure3500Flow Rate10
FunctionPilot to Close CheckSeal MaterialFluorocarbon
Maximum Flow Rate10 GAL/MIN, 38 L/MINCracking Pressure50 PSI, 3.5 BAR
