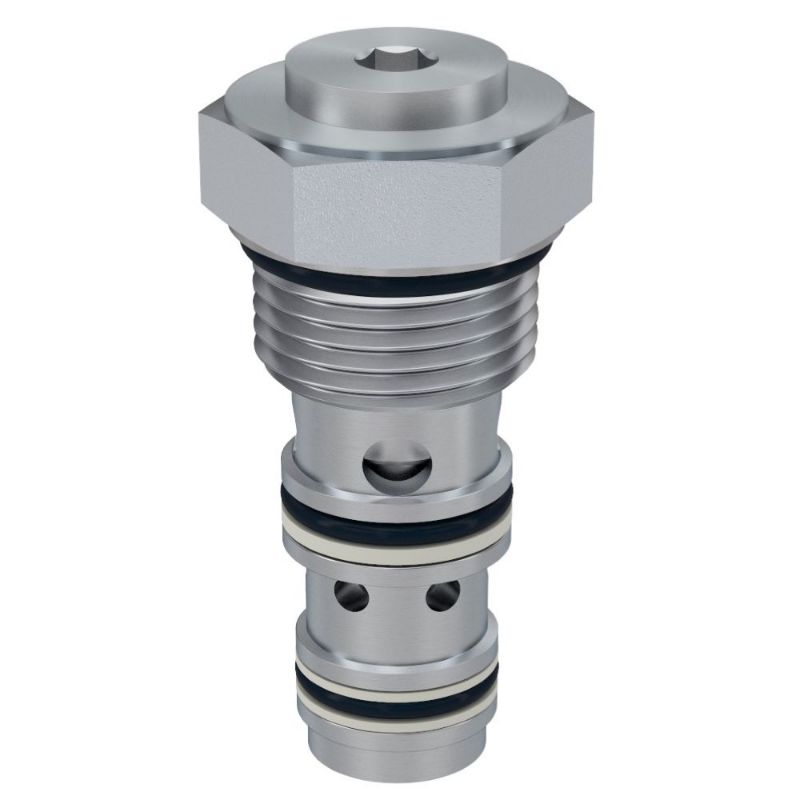

Parker CP084P - Single Pilot Operated, Pilot to Open Check Valves

Parker’s P.O. check valve assemblies allow flow up to 150 lpm (40 gpm) with pressures up to 420 bar (6,000 psi). Return flow can be enable by an external pilot supply, which shifts the internal poppet into an open position.

AFP Availability:	Quote Required
Partner Available:	24 In Stock

Brand Parker

Part No. CP084P

$72.92/each

Products specifications

Attribute name	Attribute value
UOM	EA	For Fluid Type	Synthetic Hydraulic Fluids
Division	Hydraulic Cartridge Systems Division	Flow Direction	2-3 Free Flow
Maximum Inlet Pressure Rating	207 bar	Function	Single Pilot to Open Check
Pilot Pressure Ratio	3:1	Cracking Pressure	25 psi
Leak Rate	5	Maximum Operating Temperature	250 °F
Cavity Size	C08-3	Installation Torque	23 lb-ft
Minimum Operating Temperature	-30 °F	Flow Rate	n/a
Operating Temperature	-30 to 250 °F	Division	Hydraulic Systems Division
Body Material	n/a	Pilot Location	1
Maximum Flow Rate	5 Gal/min	Valve Material	Steel
Weight	0.05 kg	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Maximum Operating Pressure	3000 psi	Filter Efficiency Rating	SAE Class 4
Seal Material	Nitrile	Actuation Type	Pilot Operated
Cracking Pressure	25 PSI, 1.7 BAR	Seal Material	Nitrile
Maximum Flow Rate	5 GAL/MIN, 19 L/MIN
