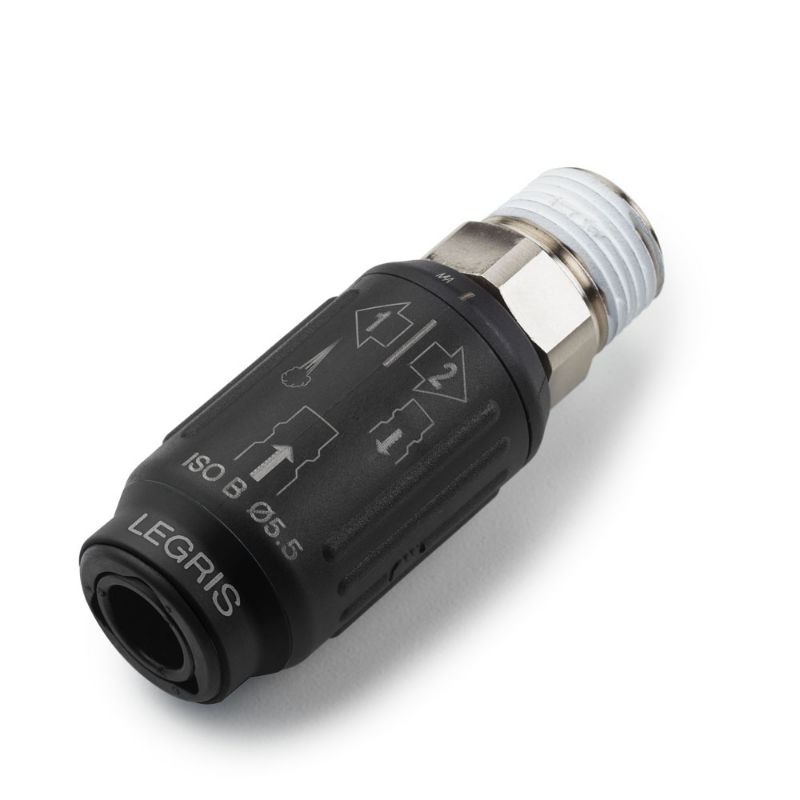

Parker CP05 U2N03 - Transair® Safety Couplers and Plugs

Transair® safety air couplers are designed for frequent connection and disconnection. The two-turn release system vents the downstream pressure, preventing serious injury.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. CP05 U2N03

$49.73

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Assembly Time	0.15 Hours
Weight	0.20 lb	Division	Fluid System Connectors Division
Minimum Operating Temperature	-20 °C	Flow Rate	97 SCFM
Quantity per Box	6	Application	Industrial Gas
Materials of Construction	Nitrile (Seal)	Division	Low Pressure Connectors Europe Division
Maximum Operating Pressure	232 psi	Brand	Parker
Maximum Operating Temperature	140 °F	Body Material	Polymer HR / Zamac
Coupling Half	Male NPT Coupler	Connection Size	3/8 INCH\|9,53 MM
Body Size	3/8 inch	Industry Standards	ISO 4414, series B
