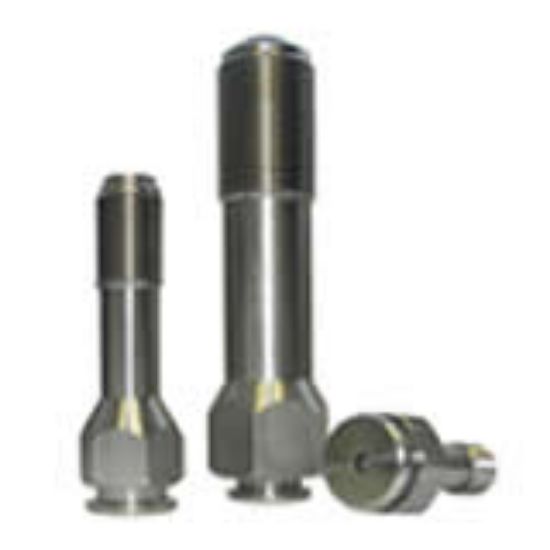

Parker CL14S6-10 - Wellhead Grease Fittings, Combination Lubricant Stick Injector Series

Parker PGI’s Combination Lubricant/Stick Injector Grease Fittings accept button head grease gun couplers for injecting grease or stick lubricants. They are offered in double ball and single ball styles for service to 10,000 psi.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. CL14S6-10

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Materials of Construction	Stainless Steel AISI 302 (Spring)	Connection Size	UNC
Heat Treatment	n/a	Body Material	Carbon Steel AISI 1215
Maximum Operating Pressure	689 bar	Plating Type	Zinc
Product Style	Double Ball Check	Ball Material	AISI 52100 Chrome Steel Alloy
Length	3-1/16 inch	Division	Instrumentation Products Division
Body Material	1215	Product Style	Double Ball Check
Connection Thread Size	3/4"-10 UNC

Product resources

PGI-WF

Wellhead Fittings & Valve Components (PDF)
