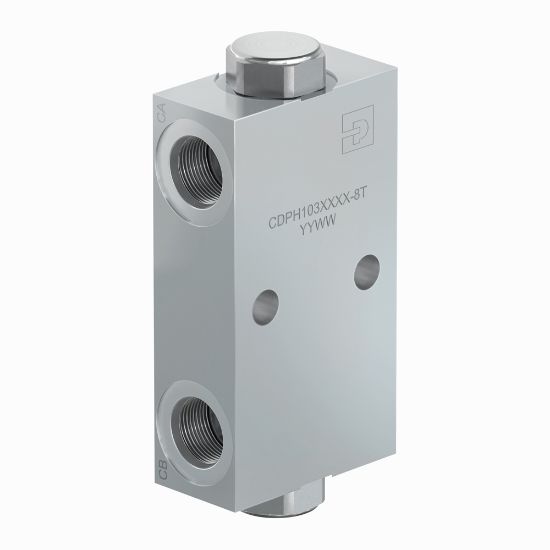

Parker CDPH103P100N-8T - Pilot Piston Style Dual Pilot Operated Check Valves

Designed to lock hydraulic circuits or actuators in rest conditions, Parker’s dual pilot operated check valves allow bidirectional flow from 38 lpm (10 gpm) to 226 lpm (60 gpm) and pressures up to 350 bar (5,000 psi) after pilot pressure is supplied.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. CDPH103P100N-8T

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Body Material	Steel
Connection Type	SAE	Minimum Operating Temperature	-30
Maximum Operating Pressure	5000	Division	Hydraulic Valve Systems Division
Division	Hydraulic Systems Division	For Fluid Type	Synthetic Hydraulic Fluids
Valve Material	Steel (all parts)	Filter Efficiency Rating	SAE Class 4
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Maximum Operating Temperature	250
Connection Size	-8	Cavity Size	C10
Actuation Type	Pressure Sensing	Operation Type	Automatic
Operating Temperature	-30 to 250	Maximum Inlet Pressure Rating	5000
Maximum Flow Rate	16	Flow Rate	16
Sealed Pilot Included	No	Function	Dual Pilot Operated
Leak Rate	312 Cc/min across Pilot Piston (no seals)	Configuration	Pilot Piston Style
Mounting Type	Line Mounted	Flow Direction	Free Flow Valve to Cylinder
Cracking Pressure	100	Pilot Pressure Ratio	4:1
Weight	3.39	Seal Material	Nitrile
Maximum Inlet Pressure Rating	5000 PSI, 350 BAR	Sealed Pilot Included	No
Flow Rate	16 GAL/MIN, 60 L/MIN	Cracking Pressure	100 PSI, 6.9 BAR
