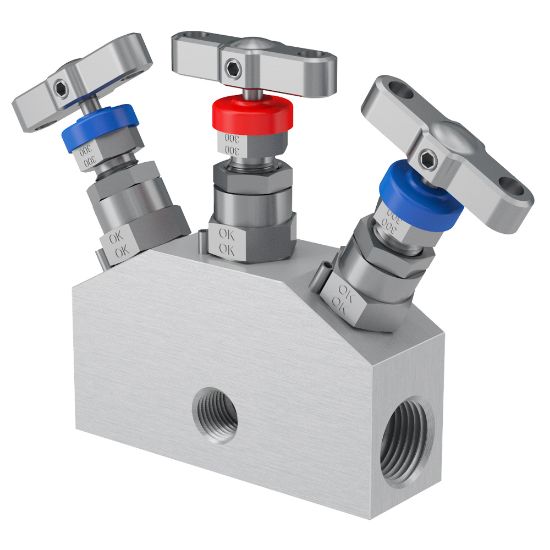

Parker HL6MO3DBB3PNC - 2, 3 and 5 Valve instrument manifolds, needle pattern, remote mount - H Series

Compact and lightweight multiple block instrument manifold valves for remote installation to pressure or differential pressure (flow) measurement devices. Available in pressure ratings up to 6,000 psi (414 bar) and 10,000 psi (689 bar)

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. HL6MO3DBB3PNC

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Operating Temperature	PTFE packing: From -54°C to +260°C, From -65°F to +500°F<br/>Graphite packing: From -54°C to +538°C, From -65°F to +1000°F	Division	Instrumentation Products Division
For Fluid Type	General Gaseous and Liquid Media	Additional Options	Contact Parker for the following options: <br/>Material Options: Alloy M400, Duplex, Super Duplex, Alloy C276, Titanium, Alloy 625, Alloy 825, Carbon Steel<br/>Connection options: BSPP, BSPT, Integral Swivel Gauge, Socket Weld, Butt Weld, Inverted and PF
Mounting Option	Carbon Steel brackets and bolts, Stainless Steel brackets and bolts	Outlet Connection	1/2 Inch NPT Female
Vent Size	1/4 Inch NPT Female	Packing Material	Graphite
Body Material	6Mo	Seat Material	Metal to Metal
Options	Blank Plug	Configuration	Double Isolate and Vent
Meets Certifications	NACE	Additional Options	n/a
Body Pattern	Short Pattern	Inlet Connection	1/2 Inch NPT Female
Number of Valves	3	Body Type	Flat Barstock
Operating Pressure	6000 PSI / 414 BAR
