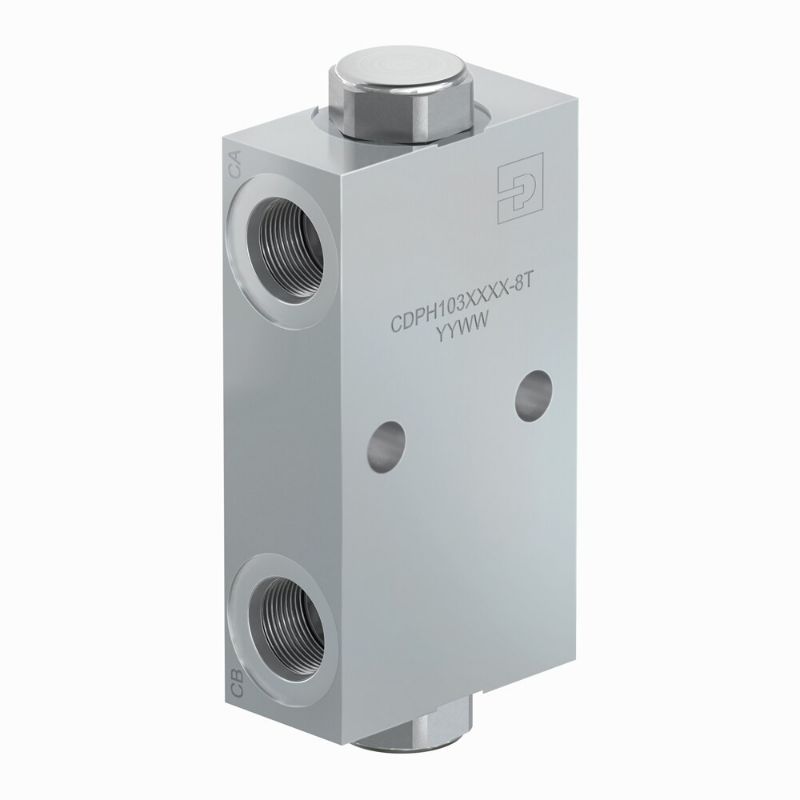

Parker CDP103A20-A8T - Pilot Piston Style Dual Pilot Operated Check Valves

Designed to lock hydraulic circuits or actuators in rest conditions, Parker’s dual pilot operated check valves allow bidirectional flow from 38 lpm (10 gpm) to 226 lpm (60 gpm) and pressures up to 350 bar (5,000 psi) after pilot pressure is supplied.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. CDP103A20-A8T

$51.92

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Minimum Operating Temperature	-35
Connection Type	SAE	Division	Hydraulic Valve Systems Division
Division	Hydraulic Systems Division	For Fluid Type	Synthetic Hydraulic Fluids
Valve Material	Steel (all parts)	Filter Efficiency Rating	SAE Class 4
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Body Material	Aluminum
Maximum Operating Temperature	200	Maximum Operating Pressure	3000
Connection Size	-8	Weight	1.47
Cavity Size	C10	Actuation Type	Pressure Sensing
Operation Type	Automatic	Seal Material	D-Ring (Standard)
Maximum Flow Rate	16	Flow Rate	16
Sealed Pilot Included	Yes	Cracking Pressure	20
Operating Temperature	-35 to 200	Function	Dual Pilot Operated
Leak Rate	312 Cc/min across Pilot Piston (no seals)	Configuration	Pilot Piston Style
Mounting Type	Line Mounted	Flow Direction	Free Flow Valve to Cylinder
Pilot Pressure Ratio	4:1	Maximum Inlet Pressure Rating	3000
Seal Material	D-Ring (Standard)	Sealed Pilot Included	Yes
Flow Rate	16 GAL/MIN, 60 L/MIN	Cracking Pressure	20 PSI, 1.4 BAR
Maximum Inlet Pressure Rating	3000 PSI, 210 BAR
