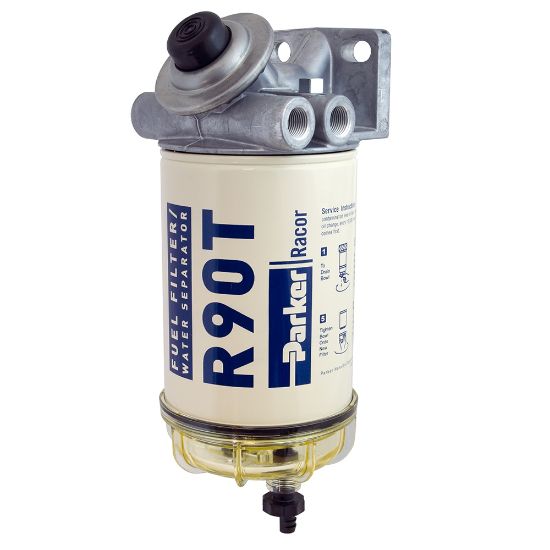

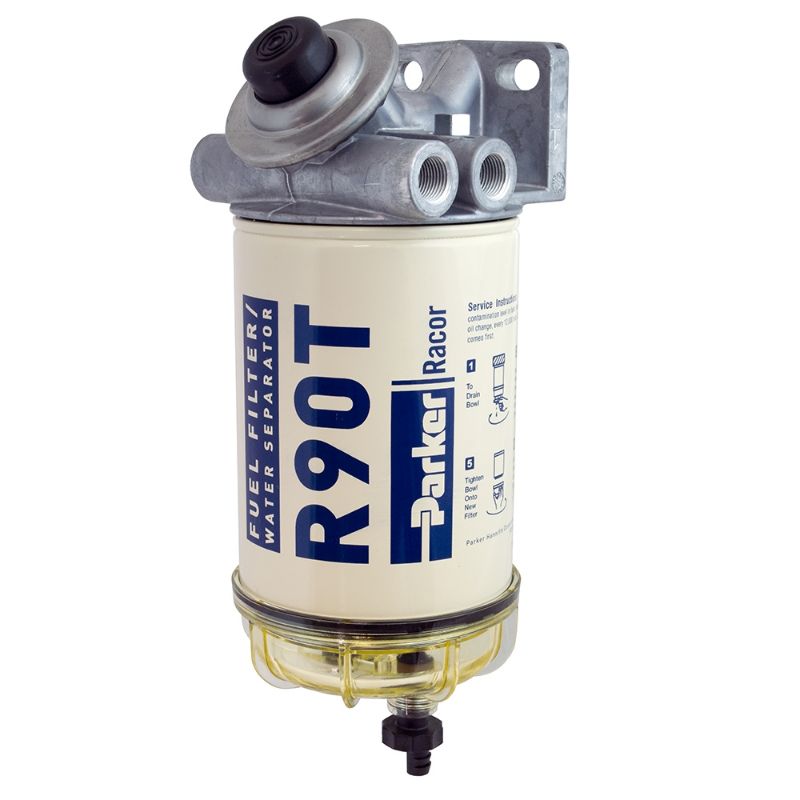

Parker 490R10 - Fuel Filter Water Separator – Racor Spin-on Series

Racor Spin-on Series Fuel Filter Water Separators provide maximum protection of modern engines by effectively removing water, sand, dirt, and rust contamination from fuel. Integral priming pump and fuel heater available as an option.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 490R10

$331.07/each

Products specifications

Attribute name	Attribute value
UOM	EA	Product Type	Diesel Spin-on FF/WS
Maximum Fluid Temperature	190.0 °F	Compatible Element	R90S = "2" Micron<br/>R90T = 10 Micron<br/>R90P = 30 Micron
Height	11.8 inch	Operating Temperature	-40 to 250 °F
Filter Element Type	10 Micron Aquabloc Spin-on	For Fluid Type	Diesel
Clean Pressure Drop	0.95 psi	Division	Engine Mobile Original Equipment Division
Depth	4.8 inch	Number of Ports	2 Inlet / 2 Outlet
Brand	Racor	Maximum Operating Pressure	207.0 kPa
Weight	1.4 kg	Head Material	Aluminium Alloy
Accessories Included	See Product Support Tab	Width	114.0 mm
Location	North America and EMEA regions	Micron Rating	98% @ 10 Micron
Mounting	Bracket Included	Bowl Type	Standard, Clear Engineering Plastic
Part Type	Filter Assembly	Bowl Material	Clear Engineering Plastic
Heater Power Rating	No Heater	Port Size	3/8"-18 NPTF (SAE J476)
Product Series	Diesel Spin-on 400	Integral Primer Pump Included	Button Priming Pump (Diesel)
Flow Rate	90 gph (341 lph)

Product resources

Literature and Reference Materials

Selector Guides

Racor--400 Diesel Spin-on--RSL0366 (PDF)
