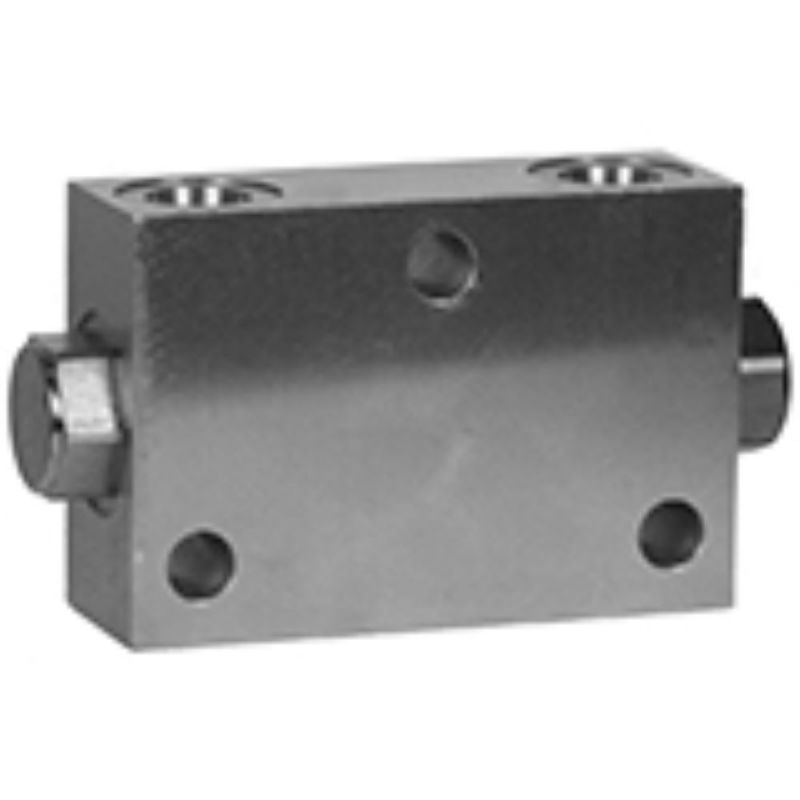

Parker CDP081P100N-A6T - Pilot Piston Style Dual Pilot Operated Check Valves

Designed to lock hydraulic circuits or actuators in rest conditions, Parker’s dual pilot operated check valves allow bidirectional flow from 38 lpm (10 gpm) to 226 lpm (60 gpm) and pressures up to 350 bar (5,000 psi) after pilot pressure is supplied.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. CDP081P100N-A6T

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Flow Rate	10	Seal Material	Nitrile
Connection Type	SAE	Minimum Operating Temperature	-30
Division	Hydraulic Valve Systems Division	Division	Hydraulic Systems Division
For Fluid Type	Synthetic Hydraulic Fluids	Valve Material	Steel (all parts)
Filter Efficiency Rating	SAE Class 4	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Maximum Operating Temperature	250	Body Material	Aluminum
Maximum Operating Pressure	3000	Actuation Type	Pressure Sensing
Operation Type	Automatic	Operating Temperature	-30 to 250
Sealed Pilot Included	No	Connection Size	-6
Maximum Flow Rate	10	Weight	1.32
Function	Dual Pilot Operated	Leak Rate	312 Cc/min across Pilot Piston (no seals)
Cavity Size	C08	Configuration	Pilot Piston Style
Mounting Type	Line Mounted	Flow Direction	Free Flow Valve to Cylinder
Cracking Pressure	100	Pilot Pressure Ratio	4:1
Maximum Inlet Pressure Rating	3000	Seal Material	Nitrile
Sealed Pilot Included	No	Flow Rate	10 GAL/MIN, 38 L/MIN
Cracking Pressure	100 PSI, 6.9 BAR	Maximum Inlet Pressure Rating	3000 PSI, 210 BAR
