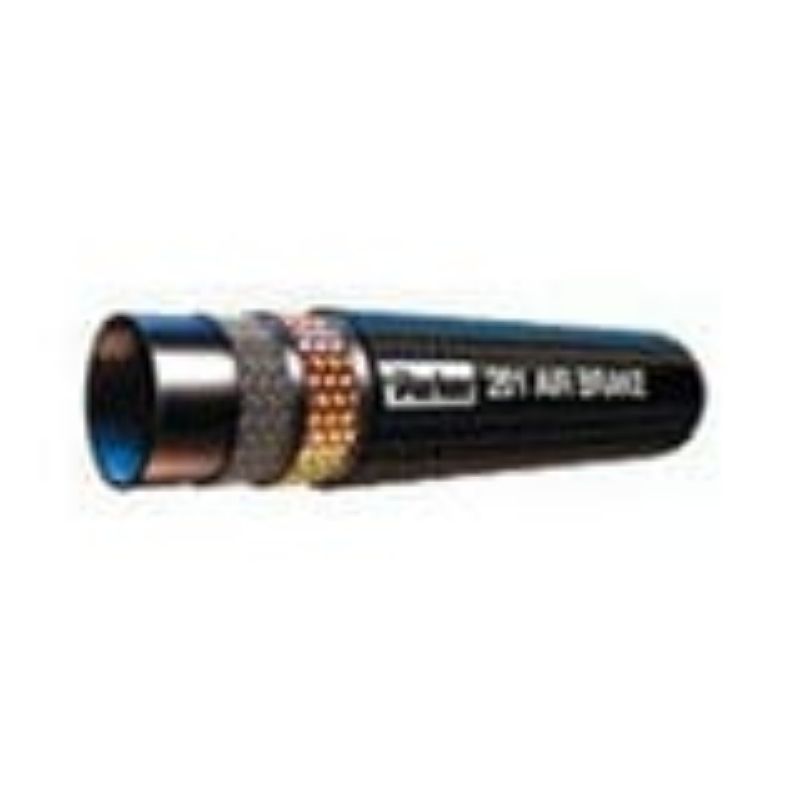

Parker 201-12 - Transportation Hose 200-3000 PSI - 201 Hose

Parker’s 201 hose is a transportation hose that has a pressure range of 200-3000 PSI and is reinforced with one steel braid and one fiber braid making it excellent for rugged transportation applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 201-12

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Maximum Operating Temperature	150 °C
Minimum Operating Temperature	-40 °C	Maximum Operating Pressure	1500 psi
Minimum Bend Radius	6-1/2 inch	Media	Petroleum Hydraulic Fluids (Petroleum Base)
Inside Diameter	5/8 inch	Outside Diameter	1.080 inch
Hose Inner Tube Material	Synthetic Rubber	Nominal Hose Inside Diameter	16 mm
Specifications Met	D.O.T. FMVSS 106, Class AII Air Brake	Application	Antifreeze Solutions
Weight	0.60 kg/m	Compatible Fitting	26 Series
Hose Cover Type	Fiber Cover	Hose Reinforcement Material	1 Braid of Fiber and 1 Braid of Steel Wire
Hose I.D. (size)	-12

Product resources

Literature and Reference Materials

Parker Hydraulic Hoses, Fittings and Equipment Catalogue CAT_4400_UK--(English) (PDF)
