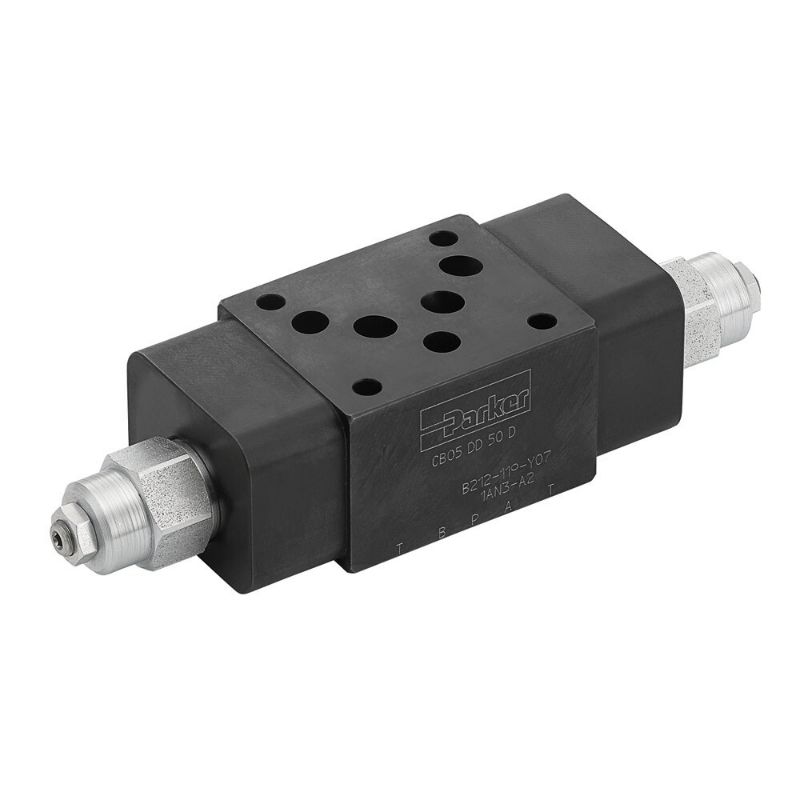

Parker CB03DD30NA - Counterbalance Sandwich Valve - CB Series

Parker’s CB series counterbalance valve controls the actuator movement with overrunning loads.

Availability:	Quote Required
Partner Available:	8 In Stock

Brand Parker

Part No. CB03DD30NA

$1,064.25

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Temperature	176 °F
Maximum Operating Pressure	3000 psi	Seal Material	Nitrile
Body Material	Steel	Division	Hydraulic Valve Systems Division
Maximum Flow Rate	15 Gal/min	Media	Oil
Actuation Type	Hydraulic Pressure	Weight	1.7 lb
Minimum Operating Temperature	-8 °F	Port Connection	A and B Port
Size	CETOP 3	Mounting Type	Subplate
Product Style	Counterbalance Valve	Pilot Pressure Ratio	3:01
Filter Efficiency Rating	ISO 4406 18/16/13 (meet NAS 1638:7)	Allowable Circuit Leakage	5 drops/min
Maximum Operating Pressure	3000 PSI	Size	NFPA D03; CETOP 3; NG6
Mounting Type	Subplate	Maximum Flow Rate	15 GPM
