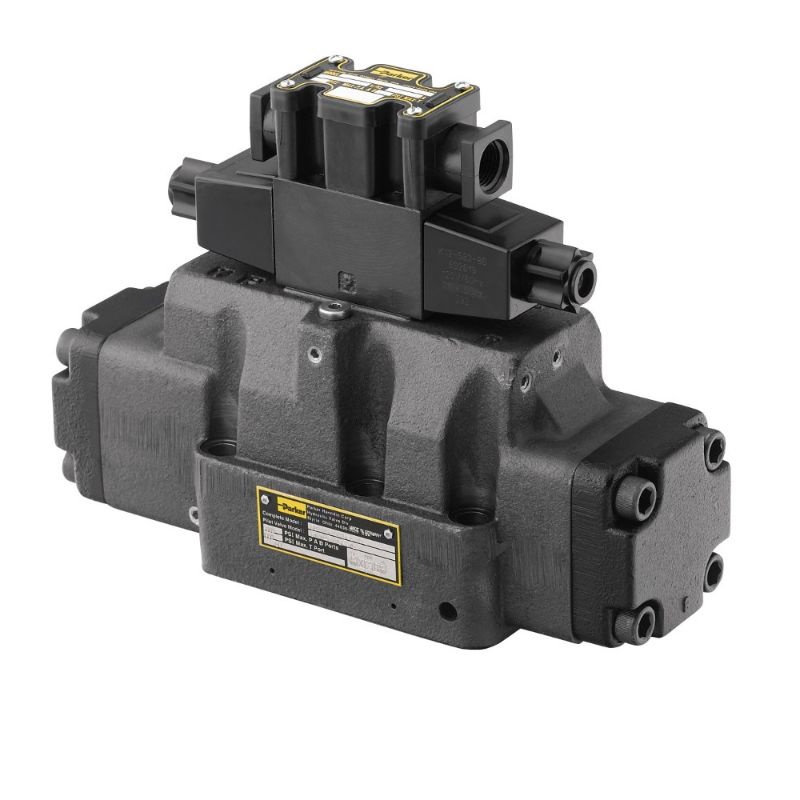

Parker D81VW082C4NYCF - Pilot Operated Directional Control Valve - D81VW Series

Parker’s D81VW directional control valves are 5-chamber, pilot operated, solenoid controlled valves.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. D81VW082C4NYCF

$1,996.50/each

Products specifications

Attribute name	Attribute value
UOM	EA	Size	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot
Options	Omit - No Options	Coil Specifications Met	Omit - Standard Valve
Body Material	Grey Iron	Mounting Type	Subplate
Maximum Flow Rate	160	Solenoid Option	Low Watt
Minimum Operating Temperature	-4	Pilot Inlet / Drain Locations	Internal Pilot, Internal Drain
Actuation Type	Hydaulic Pressure	Weight	43.2
Seal Material	Nitrile	Spool Code	082 - 4-Way, 3 Position; P Port Blocked; Metered
Maximum Operating Pressure	5000	Additional Options	Consult catalog for other available features
Valve Type	Pilot Operated Directional Control Valve	Spool Position	Double solenoid, 3 position, spring centered
Maximum Operating Temperature	+140	Connection Type	Leadwire Conduit Box
Power Supply Voltage	120/60 - 110/50 VAC	Division	Hydraulic Valve Systems Division
Maximum Flow Rate	160 GPM	Size	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot
Mounting Type	Subplate	Maximum Operating Pressure	5000 PSI
