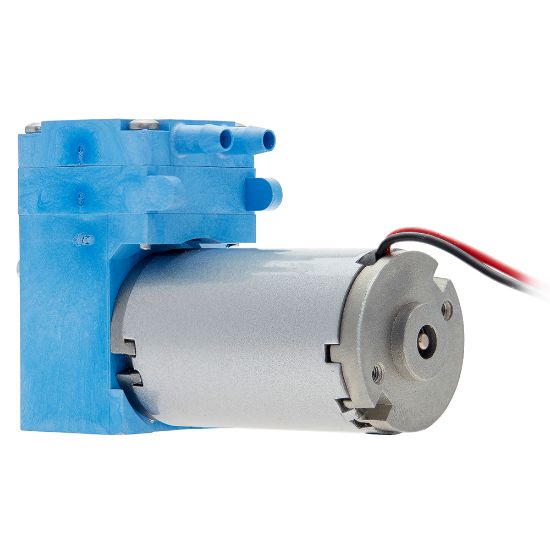

Parker C103E-13 - BTC Single and Dual Head Miniature Diaphragm Pump (Gas)

BTC is not recommended for new designs. The BTX-Connect and BTX-Brush series have succeeded the BTC with reduced weight, reduced vibration, added motor features, and an increased life rating.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. C103E-13

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Weight	184.0	Body Material	Vectra LCP
Division	Precision Fluidics Division	Tube Type	None
Vacuum Pressure Rating	0.0	Motor Type	Iron Core Brush
Diaphragm Material	EPDM	Width	30.0
Height	54.3	Motor Control Option	No Control Input (Power Input Only)
Length	77.5	Pressure Rating	1.7
Operational Life	>3000	Rated Speed	4200
Input Voltage	12	Free Flow Rate	5 L/min
Pump Type	Pressure Only (High Flow, Low Pressure)	Motor Option	>3k Hour, Iron Core Brush DC
Part Type	Obsolete	Pump Size	Single Head, Up to 5.5 L/min
