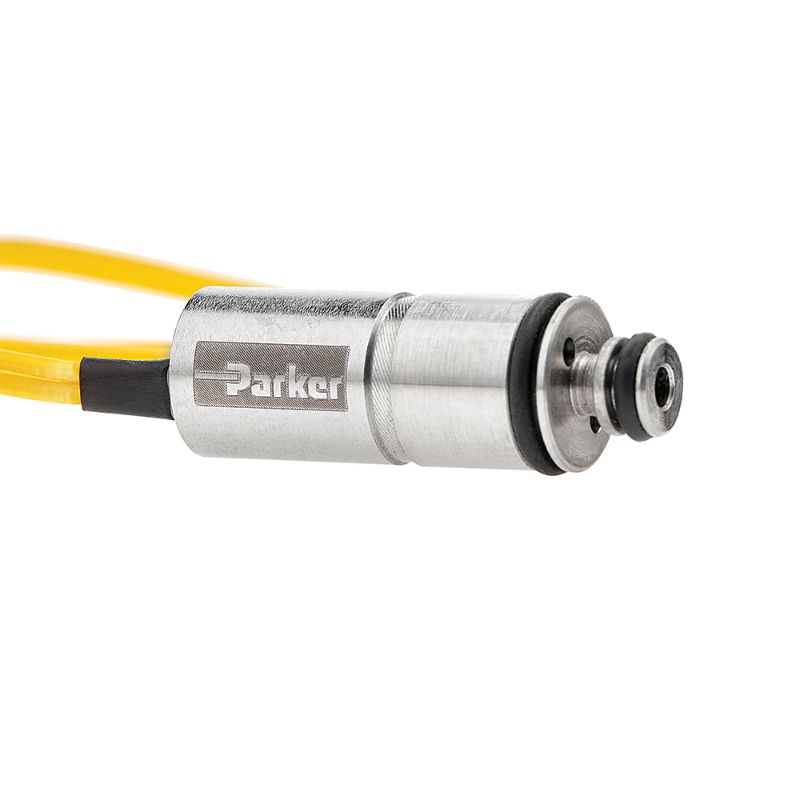

Parker C07-212FK10FF-000 - C7 Miniature Cartridge Liquid Valve

The Parker C7 valve is the smallest cartridge solenoid valve in our portfolio with a small-scale 7 mm diameter. This fast and reliable valve is ideal for life science applications and is available in a 2-way normally closed configurations.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. C07-212FK10FF-000

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	FKM	Configuration	n/a
Input Voltage	12 VDC	Actuation Type	Solenoid
Minimum Operating Temperature	32 °F	Weight	3.1 g
Division	Precision Fluidics Division	Mounting Type	Manifold
Operation Type	Electronic	Width	7 mm
Height	0.79 inch	Leak Rate	< 0.0116 cm3/min
Response Time	< 10 ms	Port Connection	Cartridge Seal
Cycles per Lifetime	130 Million	Body & Stem Base Material	Stainless Steel Series 300 and 400
Control Method	Hit and Hold	Function	Normally Closed (NC)
Power Consumption	1.0 W Typical	Electrical Connection	3.2" (80 mm) Flying Leads
Maximum Operating Pressure	up to 43.5 psi	Industry Application	Large Format Inkjet Systems
Maximum Flow Rate	429 cm3/min	For Fluid Type	Liquids
Flow Rate	up to 415 cm3/min	Orifice Size	1 mm
Maximum Operating Temperature	122 °F	Voltage (VDC)	12
Orifice 1 Size (inch)	0.039	Valve Configuration Type	2 Way Normally Closed
Wetted Materials: Seals (Elastomer)	FKM	Orifice Size (inch)	0.039
