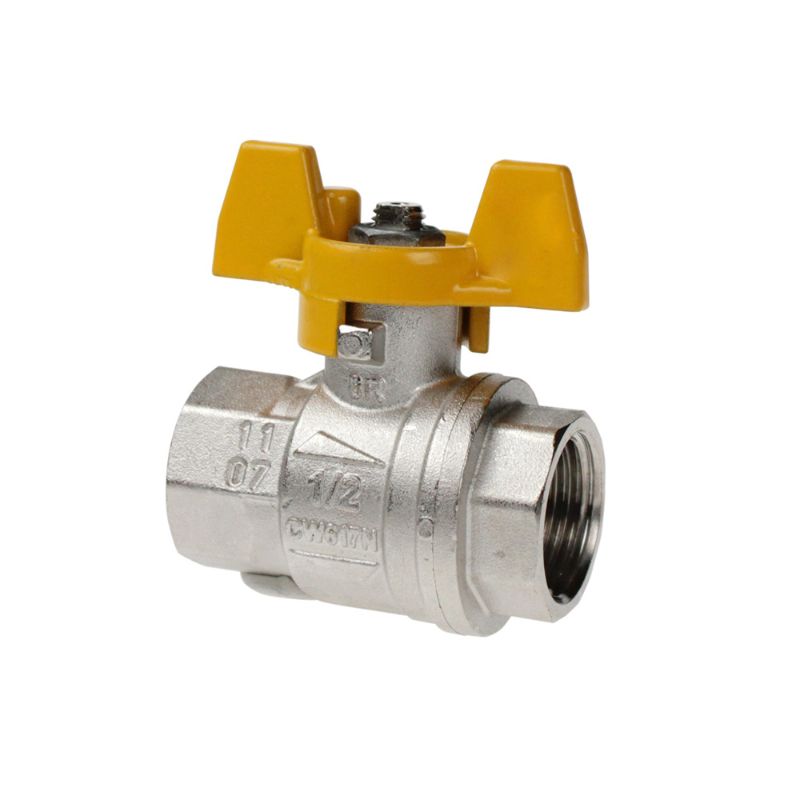

Parker BVGT4-3/8L - Ball Valve Series BVGL & BVGLOCK - Long Female Threads

BVGL & BVGLOCK series ball valves feature a nickel plated brass body and a chrome plated brass ball and are manufactured with long female threads.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. BVGT4-3/8L

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Mounting Type	Inline
Minimum Operating Temperature	-40 °F	Seal Material	PTFE
Maximum Flow Rate	n/a	Actuation Type	Manual
Seat Material	PTFE	Connection Type	BSPP
Configuration	Female to Female	Product Type	Ball Valve
Maximum Operating Temperature	170 °C	Shape	Inline
Vented	No	Function	Ball Valve
Handle Type	Compact	Thread Size	BSPP
Orifice Size	10 mm	Ball Material	Chrome-Plated Brass
Body Material	Nickel-Plated Brass	Operation Type	On/Off
Connection Size	Varies	Maximum Operating Pressure	40 bar
Thread Size (Inch)	3/8	Handle	Compact
Flow Diameter (mm)	10	Locking Mechanism	Non-Locking
