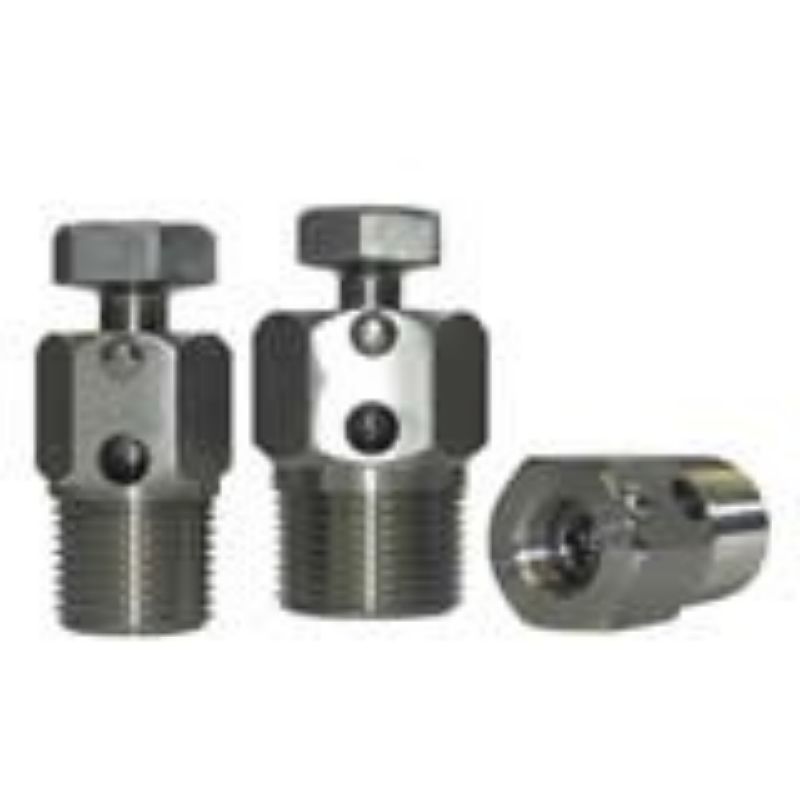

Parker BV10N2-10 - Wellhead Grease Fittings, Body Vent (Bleeder) Series

Parker PGI's Standard Hex Head and Hex Socket Head Style Body Vent Fittings are used to bleed pressure from valve bodies in service up to 10,000 PSI.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. BV10N2-10

$68.87

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Instrumentation Products Division
Product Style	Standard Hex	Length	1-5/8 inch
Nut Hex Size	7/8 inch	Ball Material	Stainless Steel AISI 440
Body Material	Carbon Steel AISI 1215	Heat Treatment	n/a
Plating Type	Zinc	Connection Size	NPT inch Thread
Connection Thread Size	1/4" NPT	Product Style	Standard Hex Head
Body Material	1215

Product resources

PGI-WF

Wellhead Fittings & Valve Components (PDF)
