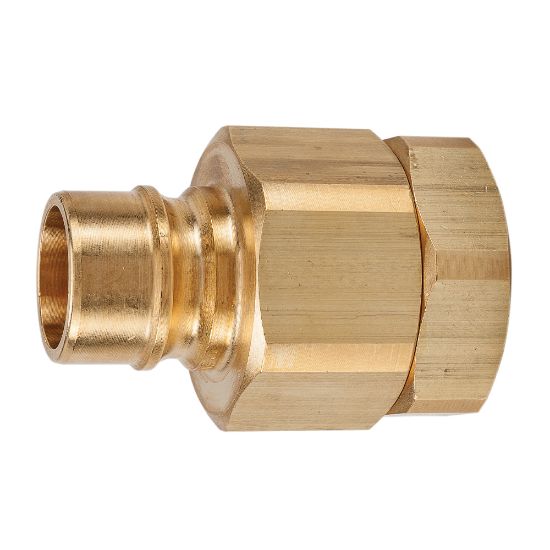

Parker BPHN20-20F - General Purpose, Hydraulic Quick Couplings - H Series

General purpose, snap-tite design quick couplings for applications where fluid lines up to 4" require fast and easy connection and disconnection. Many sizes, ports and material options.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. BPHN20-20F

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Valve Type	Unvalved	Product Type	Manual Connect
Plating Type	na	Application	Hydraulic, General Purpose
Minimum Operating Temperature	-40 °F	Division	Quick Coupling Division
Maximum Operating Temperature	250 °F	Hex Size	1.88 inch
Seal Material	Nitrile	Body Material	Brass
Valve Type	Unvalved	Connection Type	Female NPT
Body Size (inch)	1 1/4	Coupling Half	Male Nipple
Connection Thread Size (inch)	1 1/4 - 11 1/2	Body Material	BRASS
Maximum Operating Pressure	350
