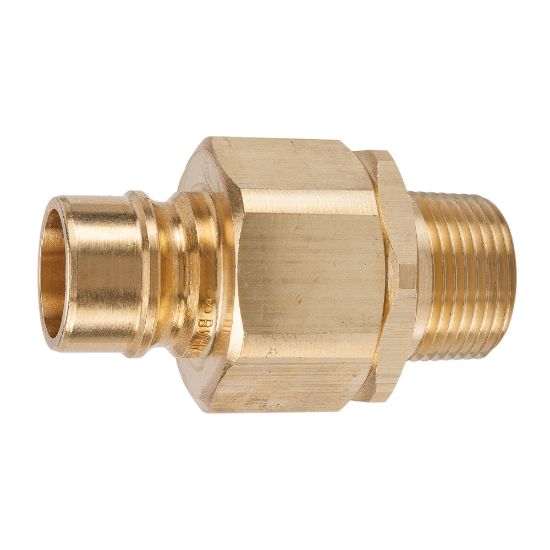

Parker BPHN16-16M - General Purpose, Hydraulic Quick Couplings - H Series

General purpose, snap-tite design quick couplings for applications where fluid lines up to 4" require fast and easy connection and disconnection. Many sizes, ports and material options.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. BPHN16-16M

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Dimensional Weight	0.27302158273381294 lb	Maximum Operating Temperature	250 °F
Hex Size	1.38 inch	Seal Material	Nitrile
Product Type	Manual Connect	Valve Type	Unvalved
Application	General Purpose	Plating Type	n/a
Division	Quick Coupling Division	Minimum Operating Temperature	-40 °F
Body Material	Brass	Body Material	BRASS
Maximum Operating Pressure	1750	Connection Type	Male NPT
Body Size (inch)	1	Valve Type	Unvalved
Coupling Half	Male Nipple	Connection Thread Size (inch)	1 - 11 1/2
