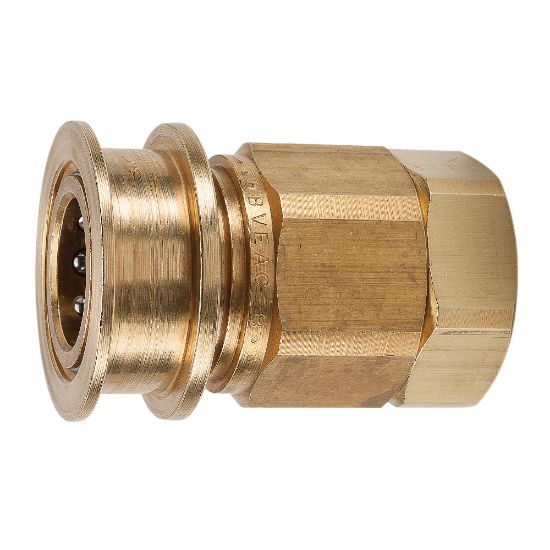

Parker BPEAC4-4F - Vacuum and Medium Pressure Quick Couplings - EA Series

Parker's multi-purpose quick couplers and nipples are ideal for use in vacuum and medium pressure applications where fluid or gas lines require fast and easy connection and disconnection.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. BPEAC4-4F

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Vacuum Pressure Rating	29.7 Inch-Hg
Product Type	Manual Connect	Valve Type	Unvalved
Division	Quick Coupling Division	Minimum Operating Temperature	-40 °F
Plating Type	na	Application	Vacuum and medium pressure hydraulics
Maximum Operating Temperature	250 °F	Hex Size	0.88 inch
Body Material	Brass	Maximum Operating Pressure	1500
Coupling Half	Female Coupler	Connection Thread Size (inch)	1/4 - 18
Body Size (inch)	1/4	Body Material	BRASS
Connection Type	Female NPTF
