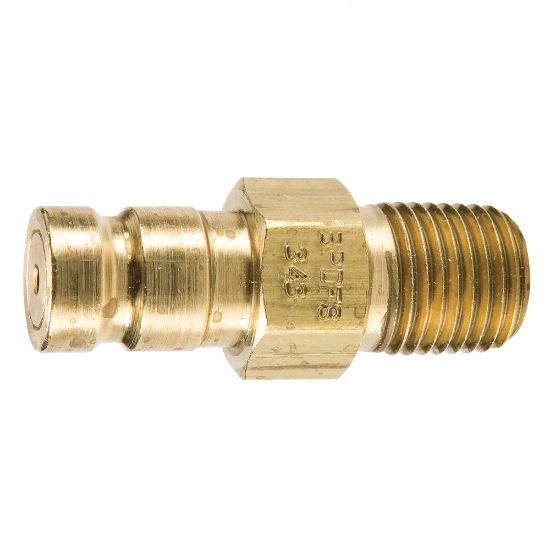

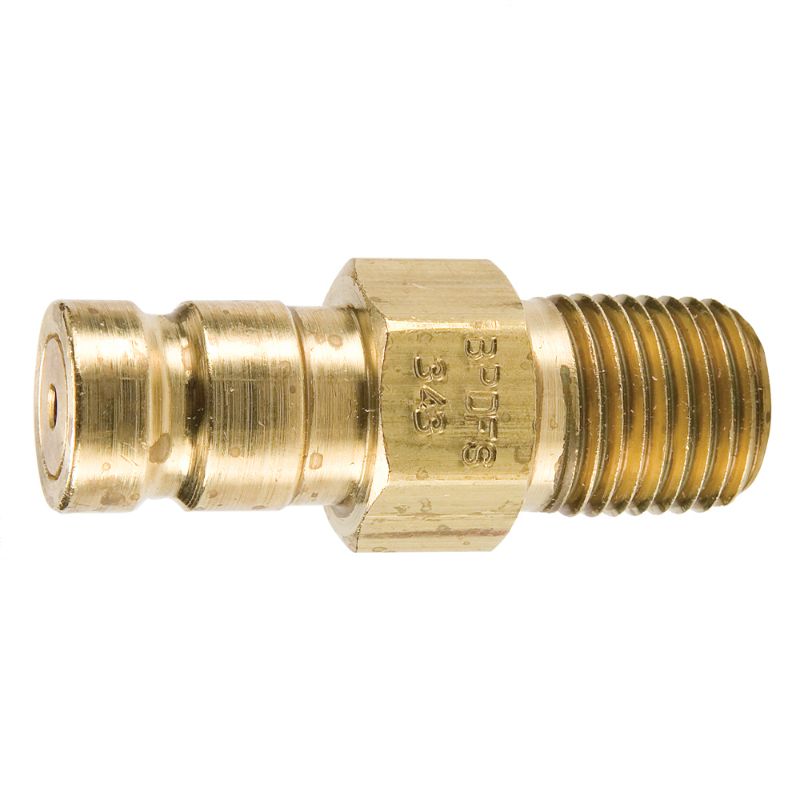

Parker BPDFS343 - Fluid Sampling, Diagnostic Quick Couplings – PDFS and BPDFS

Diagnostic fluid sampling test port quick couplings are designed to provide an easy access point for obtaining fluid samples.

AFP Availability:	Quote Required
Partner Available:	13 In Stock

Brand Parker

Part No. BPDFS343

$29.46/each

Products specifications

Attribute name	Attribute value
Seal Material	Fluorocarbon	Coupling Half	Nipple
Maximum Operating Pressure	500 psi	Division	Quick Coupling Division
Maximum Operating Temperature	250 °F	Body Material	Brass
Application	Fluid System Diagnostics	Minimum Operating Temperature	-40 °F
Body Size	1/8 inch	Coupling Half	Nipple
Connection Thread Size (inch)	1/4 - 18 NPTF	Thread Style	Male
