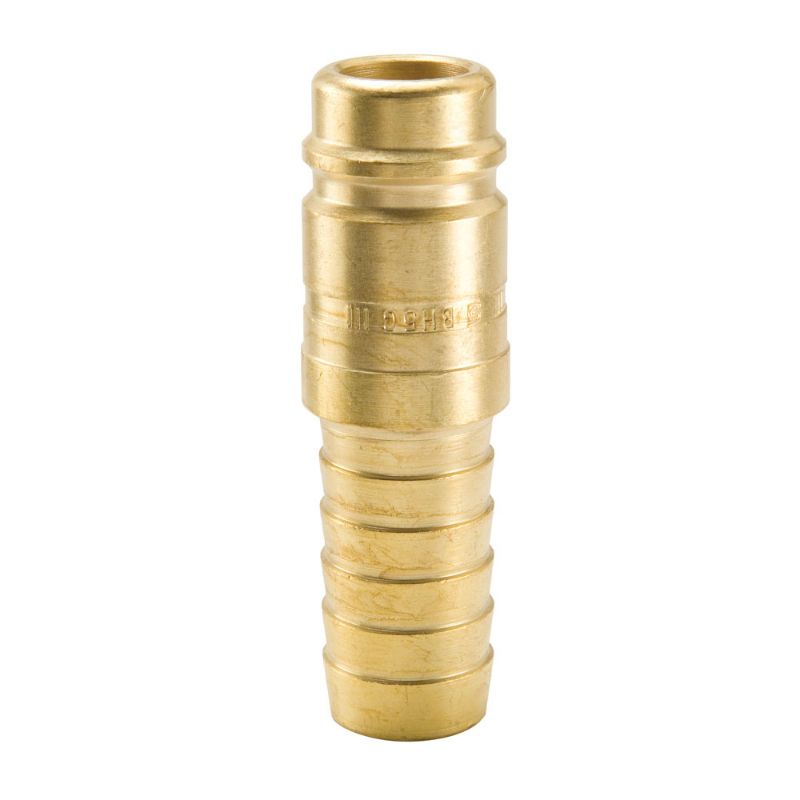

Parker BH5G - Industrial Interchange Nipples, ISO 6150-B, Air Plug

Parker's general purpose, Industrial Interchange quick connect air nipples (plugs) are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. BH5G

$13.50/each

Products specifications

Attribute name	Attribute value
Body Material	Brass	Application	Air
Specifications Met	A-A-59439 (MIL-C-4109F, ISO 6150-B)	Plating Type	na
Coupling Half	Nipple	Maximum Operating Pressure	300 psi
Valve Type	Unvalved	Division	Quick Coupling Division
Media	Low pressure fluids and compressed air	Connection Thread Size (inch)	na
Body Size (inch)	3/4	Thread Style	na
Connection Hose I.D. (inch)	3/4	Connection Type	Hose barb
Body Material	BRASS
