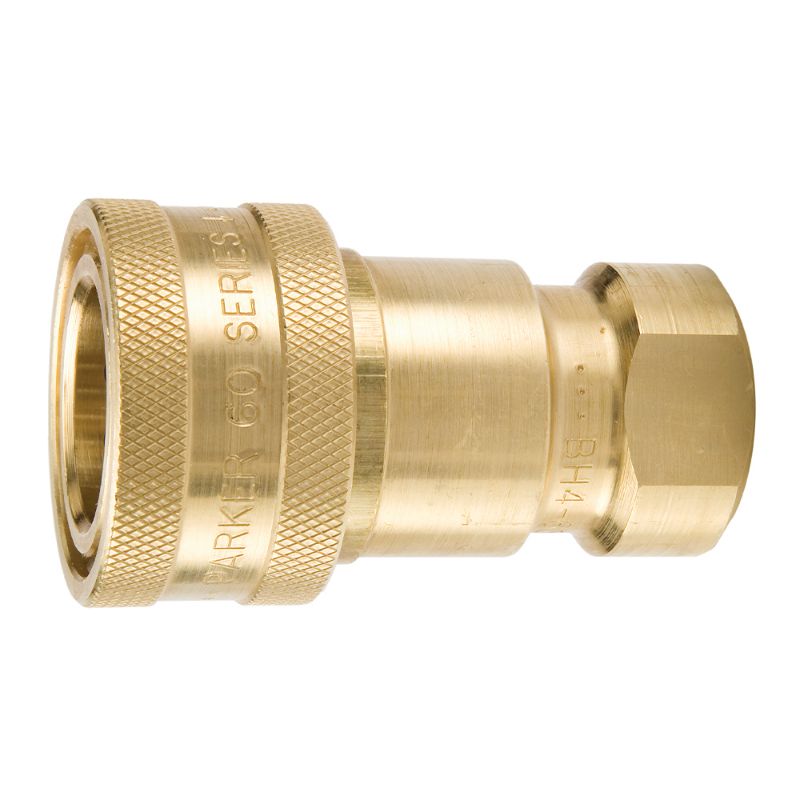

Parker BH2-60 - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series

Name: Parker BH2-60 - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series
SKU: BH2-60
Price: 42.48 USD
Availability: InStock

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

AFP Availability:

195 In Stock

Norfolk, VA	83
East Knoxville, TN	30
West Knoxville, TN	26
North Chesterfield, VA	20
Fayetteville, NC	15
Mooresville, NC	10
Johnson City, TN	4 (Pickup only)
Jacksonville, FL	3
Richmond, VA	2 (Pickup only)
Ashland, VA	2 (Pickup only)

Partner Available:

559 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. BH2-60

$42.48/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Ball Material	Stainless Steel
Body Material	Brass	Hex Size	0.81 inch
Plating Type	n/a	Minimum Operating Temperature	-40 °C
Product Type	Manual Connect	Specifications Met	ISO 7241-1 Series B
Flow Rate	3 Gal/min	Valve Material	Brass
Valve Type	Poppet	Vacuum Pressure Rating	27.4 Inch-Hg
Dimensional Weight	0.03998800959232614 lb	Maximum Operating Temperature	250 °F
Division	Quick Coupling Division	Coupling Half	Female Coupler
Seal Material	Nitrile	Connection Thread Size (inch)	1/4 - 18
Maximum Operating Pressure	3700	Body Size (inch)	1/4
Connection Type	Female NPTF	Body Material	BRASS
Application	General Purpose
