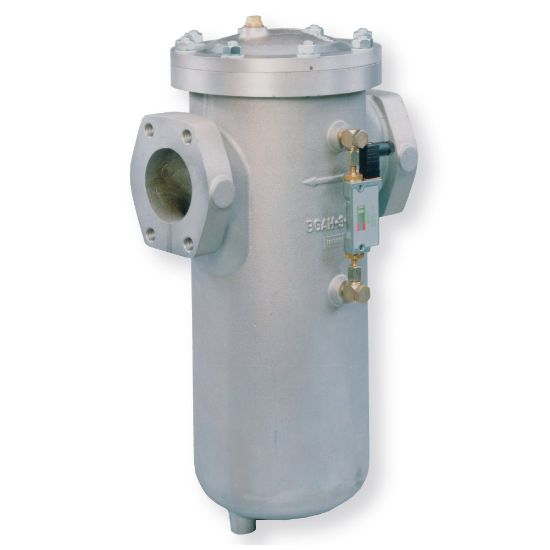

Parker BGAH1110QBD8ER481 - Low Pressure In-Line Filter - BGAH Series

The BGAH is a series of low pressure in line filters, featuring magnetic pre-filtration and a wide range of filter media.
It has a light weight aluminium housing design.
Suitable for a max. flow of 500 l/min and a max. pressure of 25 bar.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. BGAH1110QBD8ER481

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Pressure Rating	25	Mounting Type	Inline
Housing Material	Aluminium	Seal Material	Nitrile
Operating Temperature	-40 to 100	Flow Rate	400
Port Type	3" SAE-3000M	Division	Hydraulic & Industrial Process Filtration Division EMEA
Flow Capacity (l/min)	400	Options	With bypass and magnets *
Filter Element	10Q Microglass *	Indicator Type	Visual on right side, left side plugged *
Bypass Valve (bar)	1,5 *
