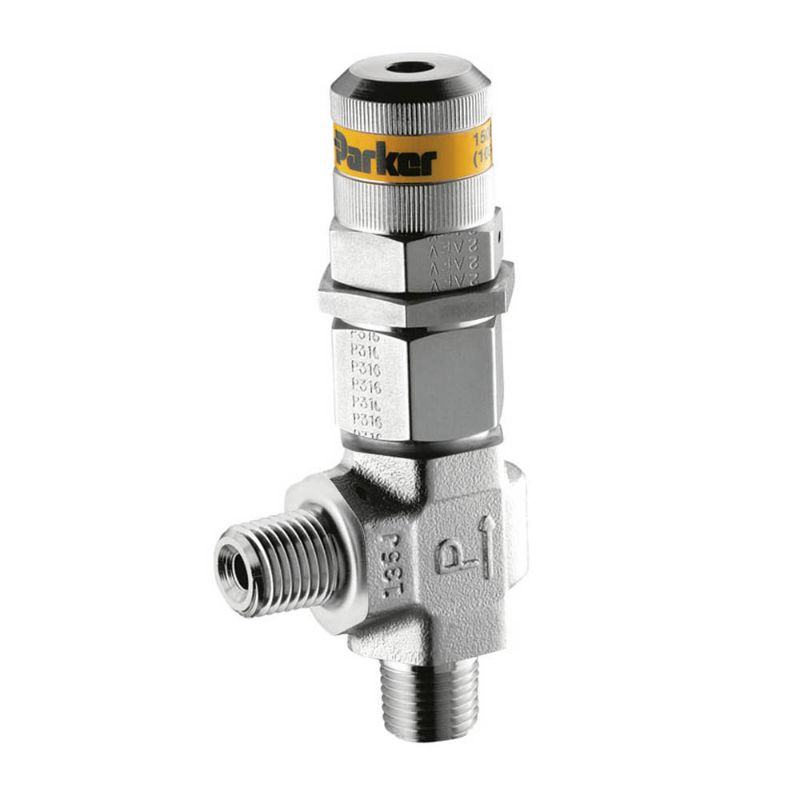

Picture of Parker 4A-RH4A-KZT-SS-K2 - Relief Valves, 6,000 PSI - R Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 4A-RH4A-KZT-SS-K2 - Relief Valves, 6,000 PSI - R Series

Parker's R Series Relief Valves are designed such that when the upstream pressure exceeds the closing force exerted by the spring, the lower stem opens, permitting flow through the valve. Pressures range from 10 PSI (0.7 BAR) to 6,000 PSI (413.7 BAR).
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. 4A-RH4A-KZT-SS-K2
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Maximum Operating Temperature93 °CMaximum Operating Pressure750 psi
Connection Size1/4 inchMinimum Operating Temperature-20 °F
Materials of ConstructionStainless Steel 316DivisionInstrumentation Products Division
Connection 1 SizeTwo Ferrule CompressionConnection 2 SizeTwo Ferrule Compression
Actuation TypeStandardFlow Coefficient0.41 Cv
Packing MaterialHighly Fluorinated Fluorocarbon RubberCracking Pressure350 to 750 psi
Back-Up Washer MaterialPTFEConnection Size1/4"
Material316 Stainless SteelConnection 1 StyleTwo Ferrule Compression Fitting
Connection 2 StyleTwo Ferrule Compression FittingConnection Size 21/4"
ActuationStandardPacking MaterialHighly Fluorinated Fluorocarbon Rubber
Cracking Pressure (psi)350 - 750
