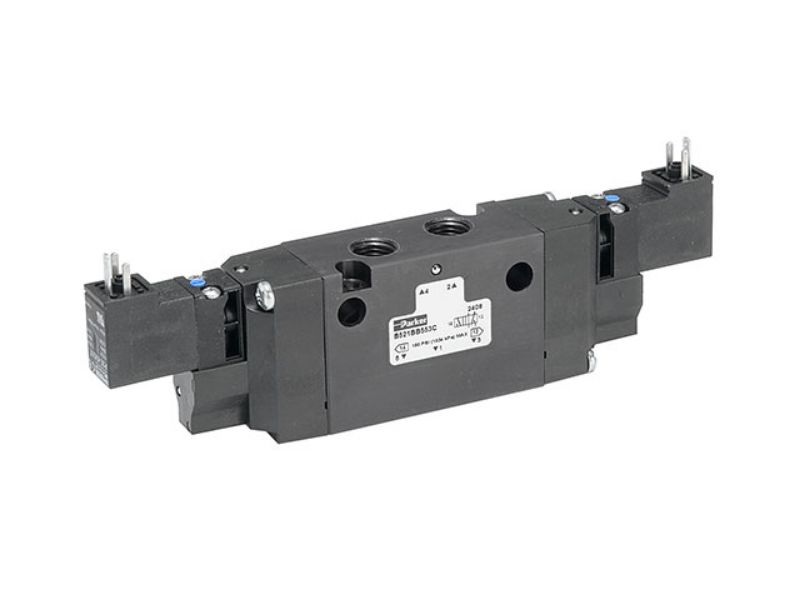

Parker B622BB549A - B Series Double Solenoid 4-way 2-position Valve

B Series Double Solenoid 4-way 2-position Valve

Availability:	Quote Required
Partner Available:	1 Limited Stock

Brand Parker

Part No. B622BB549A

$310.09

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	UOM	EA
Pkg Qty	1	Port	3/8 NPT
Operator Type Detail	Double	Solenoid Voltage	24VDC
Pilot Supply	Internal	Override Type	Non-locking
CV Factor	2.7	Parker Group	Automation
Parker Division	Pneumatic	Port Inch/BSP	NPT
Port	3/8 NPT	Pneumatic Valve Type	Inline Valve
Valve Passages	4-way	Valve Positions	2-position
Series	B	Operating Temperature	-15°C to 49°C (5°F to 120°F)
Supply Pressure Range	20 to 145 PSIG (1.4 to 10 bar)	Operator Type	Solenoid
Operator Type Detail	Double	Solenoid Connection	15mm 3-Pin DIN 43650C
Solenoid Voltage	24VDC	Pilot Supply	Internal
Override Type	Non-locking	CV Factor	2.7
