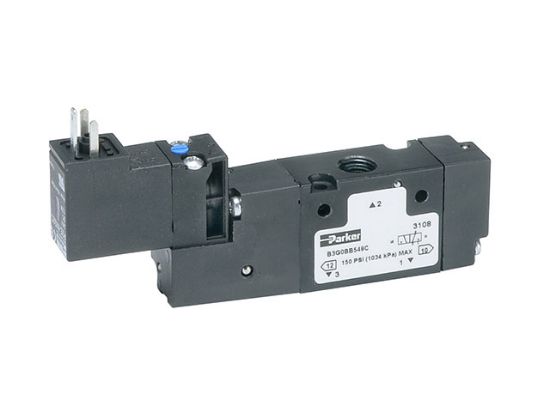

Parker B3G0BB553C - B Series Single Solenoid 3-way 2-position Valve

B Series Single Solenoid 3-way 2-position Valve

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. B3G0BB553C

$121.82

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Offset Return Type	Air Return
Pilot Supply	Internal	Pkg Qty	1
Port	1/8 NPT	Operator Type Detail	Single
Override Type	Non-locking	UOM	EA
Solenoid Voltage	120VAC	CV Factor	0.75
Port Inch/BSP	NPT	Operator Type	Solenoid
Parker Division	Pneumatic	Supply Pressure Range	20 to 145 PSIG (1.4 to 10 bar)
Solenoid Voltage	120VAC	Series	B
Valve Positions	2-position	Port	1/8 NPT
Offset Return Type	Air Return	Valve Passages	3-way
Pilot Supply	Internal	Solenoid Connection	15mm 3-Pin DIN 43650C
Operating Temperature	-15°C to 49°C (5°F to 120°F)	Parker Group	Automation
Operator Type Detail	Single	CV Factor	0.75
Override Type	Non-locking	Pneumatic Valve Type	Inline Valve
