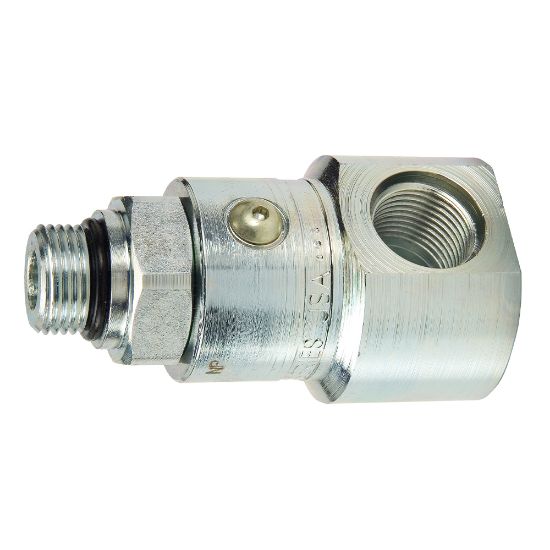

Parker PS690510-6-6 - High Pressure, Inline Hydraulic Swivels - PS Series

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.

Availability:	Quote Required
Partner Available:	3 In Stock

Brand Parker

Part No. PS690510-6-6

$141.98

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Quick Coupling Division
Minimum Operating Temperature	-40 °F	Maximum Operating Temperature	250 °F
Body Material	Steel	Plating Type	Zinc with clear trivalent chromate
Configuration	90 degree	Shaft Connection Style	Male SAE O-ring Straight Thread
Housing Connection Thread Size (inch)	9/16 - 18 UNF	Seal Material	Nitrile
Maximum Working Pressure (psi)	5000	Housing Connection Style	Female SAE Straight Thread
Configuration	90 degree	Body Size (inch)	3/8
Shaft Connection Thread Size (inch)	9/16 - 18 UNF
