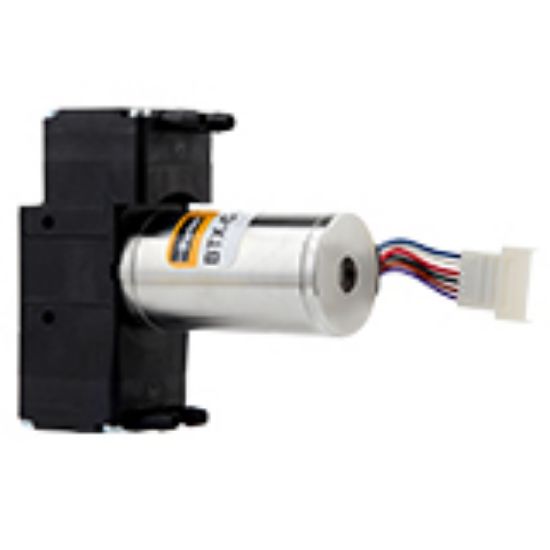

Parker B2S-090V24AN-02 - BTX Single and Dual Head Miniature Diaphragm Pump (Gas)

BTX Single and Dual Head Miniature Diaphragm Pumps (gas) Up to 11 LPM Free Flow

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. B2S-090V24AN-02

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Precision Fluidics Division	For Fluid Type	Gas
Industry Application	Compression Therapy	Maximum Continuous Pressure	n/a bar
Operating Pressure	n/a bar	Flow Rate	9.0 L/min
Length	82.7 mm	Noise Level	45 dBA
Weight	240 g	Maximum Outlet Pressure Rating	n/a bar
Product Type	Diaphragm Pump	Vacuum Pressure Rating	-533 mm-Hg
Operational Life	15000 Hours	Height	2.97 inch
Body Material	PBT	Operating Temperature	5 to 50 °C
Width	30 mm	Maximum Continuous Vacuum Pressure	-533 mm-Hg
Diaphragm Material	AEPDM	Motor Type	Slotless Brushless DC
Motor Option	High Efficiency, Brushless Slotless DC	Input Voltage	24
Pump Type	Vacuum	Pump Size	Dual Head
Free Flow Rate	Up to 9.0 L/min	Motor Control Option	0-5 VDC Speed Control
Operational Life	15,000 hr
