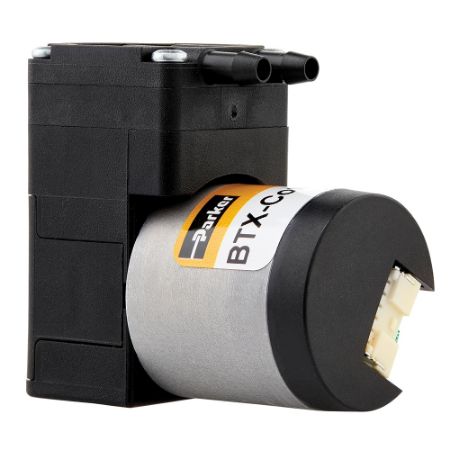

BTX Single and Dual Head Miniature Diaphragm Pump (Gas)
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's 30mm wide BTX product series offer market leading reliability and flows up to 11 L/min. Parker’s BTX-Connect pump product line combines best in class diaphragm pump design, innovative ‘connected’ brushless motor technology, ultra-low vibration, and advanced manufacturing techniques to bring a next-generation solution to next-generation device needs.
Markets:
• Clincal Diagnostics
• Analytical Chemistry
• Respiratory
• Patient Therapy
• Air Quality Measurement
• Scent Marketing
Features:
• Up to 15k hours of continuous operation
• “Connected” brushless motor with digital communication control and monitoring available
• Fail-safe design with over-current, stall, and over-temperature shut-down
• Optimized pump balancing for ultra-low vibration
Applications:
• Point of Care Diagnostics
• Negative Pressure Wound Therapy
• Compression Therapy
• Medical Simulation
• Scent Dispersion
• DVT Prevention
• Digital Ink Jet Printing
• In Vitro Diagnostics
Read More...Markets:
• Clincal Diagnostics
• Analytical Chemistry
• Respiratory
• Patient Therapy
• Air Quality Measurement
• Scent Marketing
Features:
• Up to 15k hours of continuous operation
• “Connected” brushless motor with digital communication control and monitoring available
• Fail-safe design with over-current, stall, and over-temperature shut-down
• Optimized pump balancing for ultra-low vibration
Applications:
• Point of Care Diagnostics
• Negative Pressure Wound Therapy
• Compression Therapy
• Medical Simulation
• Scent Dispersion
• DVT Prevention
• Digital Ink Jet Printing
• In Vitro Diagnostics
| Action | Part No. | Availability | Partner Available | Price | Operating Temperature | Industry Application | Weight | Flow Rate | Body Material | For Fluid Type | Product Type | Width | Height | Length | Motor Type | Noise Level | Operational Life | Diaphragm Material | Maximum Continuous Pressure | Maximum Outlet Pressure Rating | Maximum Continuous Vacuum Pressure | Pump Size | Pump Type | Motor Option | Input Voltage | Free Flow Rate | Operational Life | Motor Control Option | Division |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B1B-050A06AN-00 | Quote Required | TBD | 5 to 50 °C | Compression Therapy | 193 g | 3.7 L/min | PBT | Gas | Diaphragm Pump | 1.18 inch | 54.7 mm | 78.6 mm | Iron Core Brush | 45 dBA | 3000 Hours | AEPDM | 2.0 bar | 2.0 bar | -10.3 psi | Single Head | Pressure and/or Vacuum | Iron Core Brush DC | 6 | Up to 3.7 L/min | 3,000 hr | On/Off Power Only | |||
| B1B-050A12AN-00 | Quote Required | TBD | 5 to 50 °C | Water Quality Monitoring | 193 g | 3.7 L/min | PBT | Air | Diaphragm Pump | 30 mm | 54.7 mm | 3.10 inch | Iron Core Brush | 45 dBA | 3000 Hours | AEPDM | 2.0 bar | 2.0 bar | -9.8 psi | Single Head | Pressure and/or Vacuum | Iron Core Brush DC | 12 | Up to 3.6 L/min | 3,000 hr | On/Off Power Only | |||
| B1B-050A24AN-00 | Quote Required | TBD | 5 to 50 °C | Compression Therapy | 193 g | 3.7 L/min | PBT | Air | Diaphragm Pump | 1.18 inch | 54.7 mm | 3.10 inch | Iron Core Brush | 45 dBA | 3000 Hours | AEPDM | 29 psi | 2.0 bar | -508 mm-Hg | Single Head | Pressure and/or Vacuum | Iron Core Brush DC | 24 | Up to 3.6 L/min | 3,000 hr | On/Off Power Only | |||
| B1B-090P06AN-00 | Quote Required | TBD | 5 to 50 °C | Water Quality Monitoring | 193 g | 5.9 L/min | PBT | Gas | Diaphragm Pump | 1.18 inch | 2.15 inch | 78.6 mm | Iron Core Brush | 45 dBA | 3000 Hours | AEPDM | 1.79 bar | 1.79 bar | n/a | Single Head | Pressure | Iron Core Brush DC | 6 | Up to 5.9 L/min | 3,000 hr | On/Off Power Only | |||
| B1B-090P12AN-00 | Quote Required | TBD | 5 to 50 °C | Point of Care Diagnostics | 193 g | 5.9 L/min | PBT | Gas | Diaphragm Pump | 30 mm | 54.7 mm | 3.10 inch | Iron Core Brush | 45 dBA | 3000 Hours | AEPDM | 1.79 bar | 1.79 bar | n/a | Single Head | Pressure | Iron Core Brush DC | 12 | Up to 5.9 L/min | 3,000 hr | On/Off Power Only | |||
| B1B-090P24AN-00 | Quote Required | TBD | 5 to 50 °C | Gas Generator | 193 g | 5.9 L/min | PBT | Gas | Diaphragm Pump | 30 mm | 2.15 inch | 78.6 mm | Iron Core Brush | 45 dBA | 3000 Hours | AEPDM | 1.79 bar | 1.79 bar | n/a | Single Head | Pressure Only (High Flow, Low Pressure) | Iron Core Brush DC | 24 | Up to 5.7 L/min | 3,000 hr | On/Off Power Only | |||
| B1B-090V06AN-00 | Quote Required | TBD | 5 to 50 °C | Compression Therapy | 193 g | 5.7 L/min | PBT | Air | Diaphragm Pump | 30 mm | 2.15 inch | 3.10 inch | Iron Core Brush | 45 dBA | 3000 Hours | AEPDM | n/a bar | n/a bar | -4.4 psi | Single Head | Vacuum | Iron Core Brush DC | 6 | Up to 5.7 L/min | 3,000 hr | On/Off Power Only | |||
| B1B-090V12AN-00 | Quote Required | TBD | 5 to 50 °C | Patient Monitoring | 193 g | 5.7 L/min | PBT | Air | Diaphragm Pump | 1.18 inch | 2.15 inch | 78.6 mm | Iron Core Brush | 45 dBA | 3000 Hours | AEPDM | n/a bar | n/a bar | -533 mm-Hg | Single Head | Vacuum | Iron Core Brush DC | 12 | Up to 5.7 L/min | 3,000 hr | On/Off Power Only | |||
| B1B-090V24AN-00 | Quote Required | TBD | 5 to 50 °C | Gas Generator | 193 g | 5.6 L/min | PBT | Gas | Diaphragm Pump | 30 mm | 2.15 inch | 3.10 inch | Iron Core Brush | 45 dBA | 3000 Hours | AEPDM | n/a bar | n/a bar | -533 mm-Hg | Single Head | Vacuum | Iron Core Brush DC | 24 | Up to 5.6 L/min | 3,000 hr | On/Off Power Only | |||
| B1C-050F12AN-00 | Quote Required | TBD | 5 to 50 °C | Point of Care Diagnostics | 125 g | 3.3 L/min | PBT | Gas | Diaphragm Pump | 30 mm | 2.15 inch | 2.22 inch | Brushless DC | 45 dBA | 15000 Hours | AEPDM | 15 psi | 1.65 bar | -5.3 psi | Single Head | Pressure and/or Vacuum | Brushless DC | 12 | Up to 3.3 L/min | 15,000 hr | On/Off Power Only | |||
| B1C-050F12AN-03 | Quote Required | TBD | 5 to 50 °C | Water Quality Monitoring | 125 g | 3.3 L/min | PBT | Gas | Diaphragm Pump | 1.18 inch | 54.7 mm | 2.22 inch | Brushless DC | 45 dBA | 15000 Hours | AEPDM | 1.65 bar | 24 psi | -482 mm-Hg | Single Head | Pressure and/or Vacuum | Brushless DC | 12 | Up to 3.3 L/min | 15,000 hr | PWM Speed Control | |||
| B1C-050F24AN-00 | Quote Required | TBD | 5 to 50 °C | Gas Generator | 125 g | 3.3 L/min | PBT | Gas | Diaphragm Pump | 1.18 inch | 2.15 inch | 56.5 mm | Brushless DC | 45 dBA | 15000 Hours | AEPDM | 24 psi | 1.65 bar | -482 mm-Hg | Single Head | Pressure and/or Vacuum | Brushless DC | 24 | Up to 3.3 L/min | 15,000 hr | On/Off Power Only | |||
| B1C-050F24AN-02 | Quote Required | TBD | 5 to 50 °C | Point of Care Diagnostics | 125 g | 3.5 L/min | PBT | Gas | Diaphragm Pump | 30 mm | 2.15 inch | 2.22 inch | Brushless DC | 45 dBA | 15000 Hours | AEPDM | 24 psi | 1.65 bar | -5.36 psi | Single Head | Pressure and/or Vacuum | Brushless DC | 24 | Up to 3.5 L/min | 15,000 hr | 0-5 VDC Speed Control | Precision Fluidics Division | ||
| B1C-050F24AN-03 | Quote Required | TBD | 5 to 50 °C | Compression Therapy | 125 g | 3.3 L/min | PBT | Air | Diaphragm Pump | 30 mm | 54.7 mm | 2.22 inch | Brushless DC | 45 dBA | 15000 Hours | AEPDM | 1.65 bar | 24 psi | -482 mm-Hg | Single Head | Pressure and/or Vacuum | Brushless DC | 24 | Up to 3.3 L/min | 15,000 hr | PWM Speed Control | |||
| B1C-070P12AN-00 | Quote Required | TBD | Single Head | Pressure | Brushless DC | 12 | Up to 4.7 L/min | 15,000 hr | On/Off Power Only | Precision Fluidics Division | |||||||||||||||||||
| B1C-070P12AN-02 | Quote Required | TBD | 5 to 50 °C | Compression Therapy | 125 g | 4.7 L/min | PBT | Air | Diaphragm Pump | 1.18 inch | 54.7 mm | 2.22 inch | Brushless DC | 45 dBA | 15000 Hours | AEPDM | 21 psi | 21 psi | n/a | Single Head | Pressure | Brushless DC | 12 | Up to 4.7 L/min | 15,000 hr | 0-5 VDC Speed Control | Precision Fluidics Division | ||
| B1C-090P12AN-00 | Quote Required | TBD | 5 to 50 °C | Water Quality Monitoring | 125 g | 5.5 L/min | PBT | Air | Diaphragm Pump | 1.18 inch | 54.7 mm | 2.22 inch | Brushless DC | 45 dBA | 15000 Hours | AEPDM | 26 psi | 1.79 bar | n/a | Single Head | Pressure | Brushless DC | 12 | Up to 5.5 L/min | 15,000 hr | On/Off Power Only | |||
| B1C-090P12AN-03 | Quote Required | TBD | 5 to 50 °C | Compression Therapy | 125 g | 5.5 L/min | PBT | Air | Diaphragm Pump | 1.18 inch | 54.7 mm | 2.22 inch | Brushless DC | 45 dBA | 15000 Hours | AEPDM | 1.79 bar | 26 psi | n/a | Single Head | Pressure | Brushless DC | 12 | Up to 5.5 L/min | 15,000 hr | PWM Speed Control | |||
| B1C-090P24AN-00 | Quote Required | TBD | 5 to 50 °C | Patient Monitoring | 125 g | 5.5 L/min | PBT | Air | Diaphragm Pump | 1.18 inch | 2.15 inch | 2.22 inch | Brushless DC | 45 dBA | 15000 Hours | AEPDM | 1.79 bar | 1.79 bar | n/a | Single Head | Pressure | Brushless DC | 24 | Up to 5.5 L/min | 15,000 hr | On/Off Power Only | |||
| B1C-090P24AN-02 | Quote Required | TBD | 5 to 50 °C | Compression Therapy | 125 g | 6.1 L/min | PBT | Gas | Diaphragm Pump | 30 mm | 2.15 inch | 56.5 mm | Brushless DC | 45 dBA | 15000 Hours | AEPDM | 1.45 bar | 21 psi | n/a | Single Head | Pressure | Brushless DC | 24 | Up to 6.1 L/min | 15,000 hr | 0-5 VDC Speed Control |
