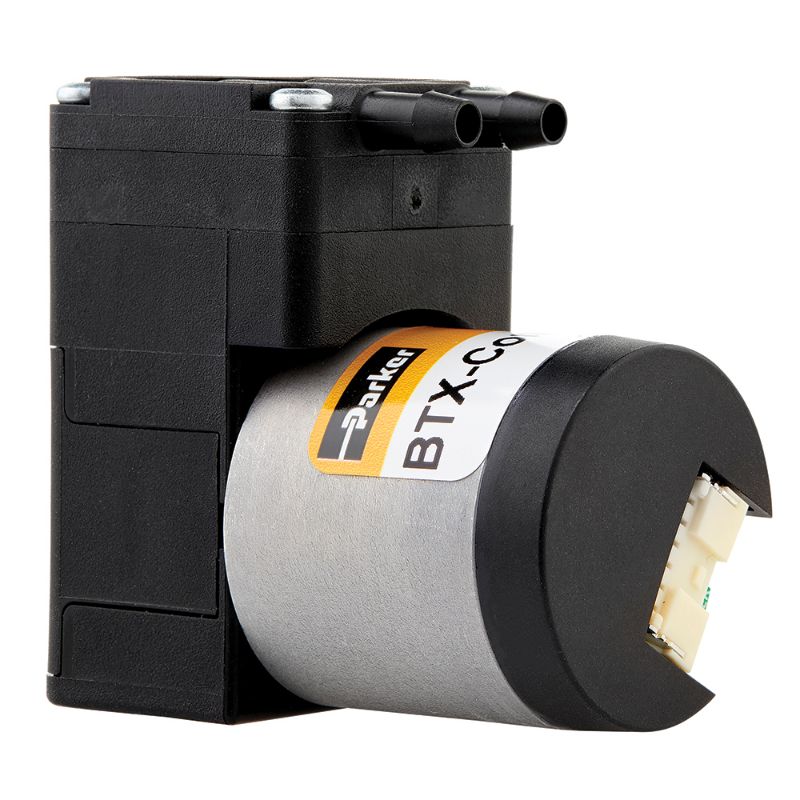

Parker B1S-090P24AN-00 - BTX Single and Dual Head Miniature Diaphragm Pump (Gas)

BTX Single and Dual Head Miniature Diaphragm Pumps (gas) Up to 11 LPM Free Flow

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. B1S-090P24AN-00

$346.50

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	For Fluid Type	Air
Height	2.15 inch	Operating Temperature	5 to 50 °C
Division	Precision Fluidics Division	Width	30 mm
Industry Application	Compression Therapy	Body Material	PBT
Product Type	Diaphragm Pump	Motor Type	Brushless DC
Noise Level	45 dBA	Operational Life	15000 Hours
Diaphragm Material	AEPDM	Maximum Continuous Vacuum Pressure	n/a
Length	75.3 mm	Weight	209 g
Flow Rate	4.9 L/min	Maximum Continuous Pressure	1.86 bar
Maximum Outlet Pressure Rating	1.86 bar	Pump Size	Single Head
Pump Type	Pressure	Motor Option	Brushless DC
Input Voltage	12	Operational Life	15,000 hr
Motor Control Option	On/Off Power Only	Free Flow Rate	Up to 4.9 L/min
