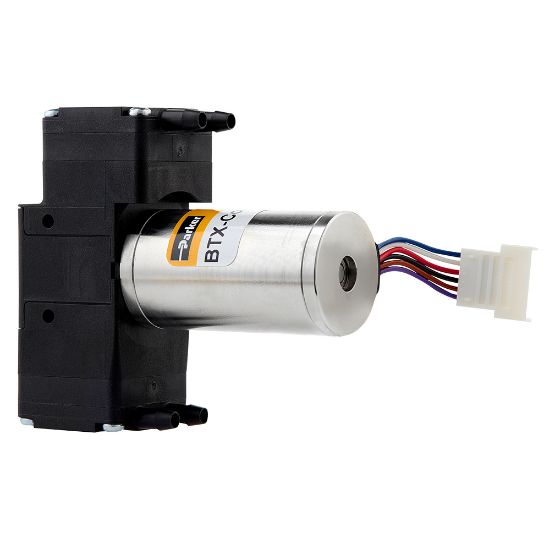

Parker B2H-050F12AN-02 - BTX Single and Dual Head Miniature Diaphragm Pump (Gas)

BTX Single and Dual Head Miniature Diaphragm Pumps (gas) Up to 11 LPM Free Flow

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. B2H-050F12AN-02

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
For Fluid Type	Air	Operating Temperature	5 to 50 °C
Division	Precision Fluidics Division	Width	30 mm
Body Material	PBT	Product Type	Diaphragm Pump
Motor Type	Brushless DC	Noise Level	45 dBA
Operational Life	15000 Hours	Diaphragm Material	AEPDM
Industry Application	Point of Care Diagnostics	Maximum Continuous Pressure	24 psi
Maximum Outlet Pressure Rating	24 psi	Maximum Continuous Vacuum Pressure	-5.36 psi
Height	2.97 inch	Length	82.7 mm
Weight	240 g	Flow Rate	6.7 L/min
Pump Type	Pressure and/or Vacuum	Motor Option	Brushless DC
Input Voltage	12	Operational Life	15,000 hr
Motor Control Option	0-5 VDC Speed Control	Pump Size	Dual Head
Free Flow Rate	Up to 6.7 L/min
