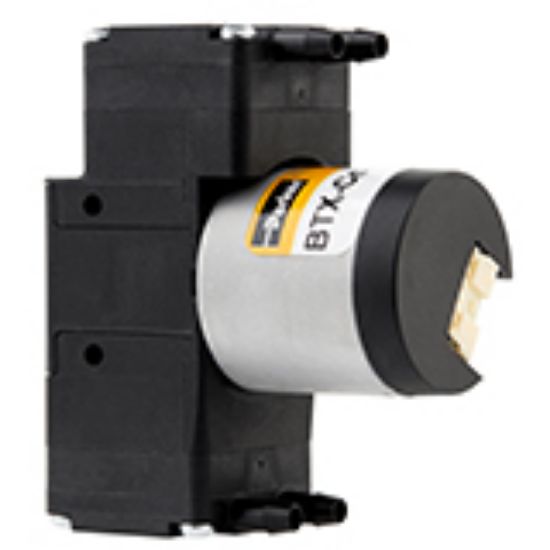

Parker B2C-090V12AN-02 - BTX Single and Dual Head Miniature Diaphragm Pump (Gas)

BTX Single and Dual Head Miniature Diaphragm Pumps (gas) Up to 11 LPM Free Flow

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. B2C-090V12AN-02

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Flow Rate	9.5 L/min	Operating Temperature	5 to 50 °C
Division	Precision Fluidics Division	Body Material	PBT
For Fluid Type	Gas	Product Type	Diaphragm Pump
Width	1.18 inch	Motor Type	Brushless DC
Noise Level	45 dBA	Operational Life	15000 Hours
Diaphragm Material	AEPDM	Industry Application	Patient Monitoring
Maximum Continuous Pressure	n/a bar	Maximum Outlet Pressure Rating	n/a bar
Maximum Continuous Vacuum Pressure	-533 mm-Hg	Operating Pressure	n/a bar
Height	75.3 mm	Length	63.9 mm
Weight	165 g	Vacuum Pressure Rating	-4.38 psi
Pump Type	Vacuum	Motor Option	Brushless DC
Input Voltage	12	Operational Life	15,000 hr
Motor Control Option	0-5 VDC Speed Control	Pump Size	Dual Head
Free Flow Rate	Up to 9.5 L/min
