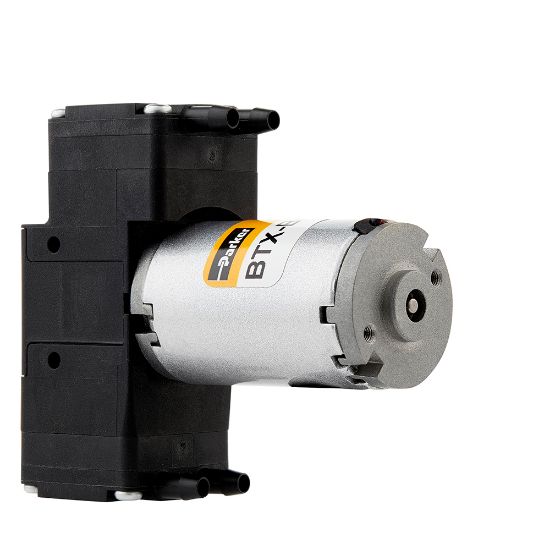

Parker B2B-050A12AN-00 - BTX Single and Dual Head Miniature Diaphragm Pump (Gas)

BTX Single and Dual Head Miniature Diaphragm Pumps (gas) Up to 11 LPM Free Flow

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. B2B-050A12AN-00

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Flow Rate	6.1 L/min	Operating Temperature	5 to 50 °C
Width	30 mm	Weight	226 g
Body Material	PBT	For Fluid Type	Gas
Product Type	Diaphragm Pump	Motor Type	Iron Core Brush
Noise Level	45 dBA	Operational Life	3000 Hours
Diaphragm Material	AEPDM	Industry Application	Patient Monitoring
Maximum Continuous Pressure	29 psi	Maximum Continuous Vacuum Pressure	n/a
Height	75.3 mm	Length	3.39 inch
Maximum Outlet Pressure Rating	29 psi	Pump Type	Pressure and/or Vacuum
Motor Option	Iron Core Brush DC	Input Voltage	12
Free Flow Rate	Up to 6.1 L/min	Operational Life	3,000 hr
Motor Control Option	On/Off Power Only	Pump Size	Dual Head

Product resources

Literature and Reference Materials
