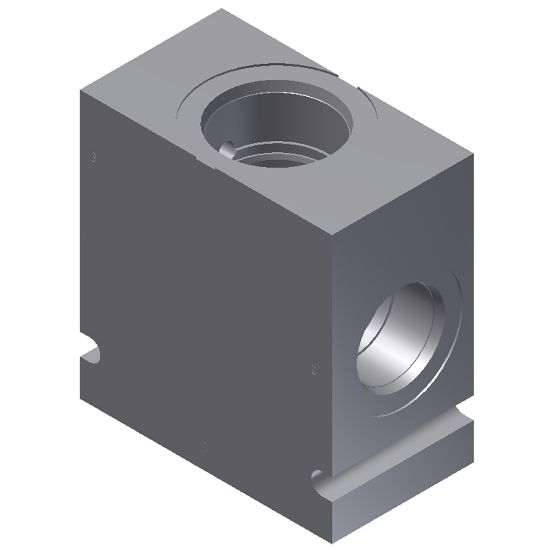

Parker B20-3S-20T - Standard Bodies

Parker’s offering of standard line bodies for each valve and cavity size offered in our catalog. These line bodies feature industry standard cavities.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. B20-3S-20T

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Body Material	Steel	Connection Type	SAE
Maximum Operating Pressure	5000 psi	Division	Hydraulic Cartridge Systems Division
Division	Hydraulic Systems Division	For Fluid Type	Mineral-based Hydraulic Fluids
Cavity Size	C20-3S	Flow Rate	Determined by Threaded Cartridge Valve Installed in Line Body
Seal Material	Determined by Threaded Cartridge Valve installed in Line Body	Maximum Operating Temperature	Determined by Threaded Cartridge Valve Installed in Line Body
Minimum Operating Temperature	Determined by Threaded Cartridge Valve Installed in Line Body	Actuation Type	Determined by Threaded Cartridge Valve Installed in Line Body
Maximum Flow Rate	Determined by Threaded Cartridge Valve installed in Line Body	Number of Positions	3-Way
Weight	2.26 kg	Connection Size	-20
Body Material	Steel	Connection Type	SAE
Number of Positions	3 way	Cavity Size	C20-3S
Connection Size	-20
