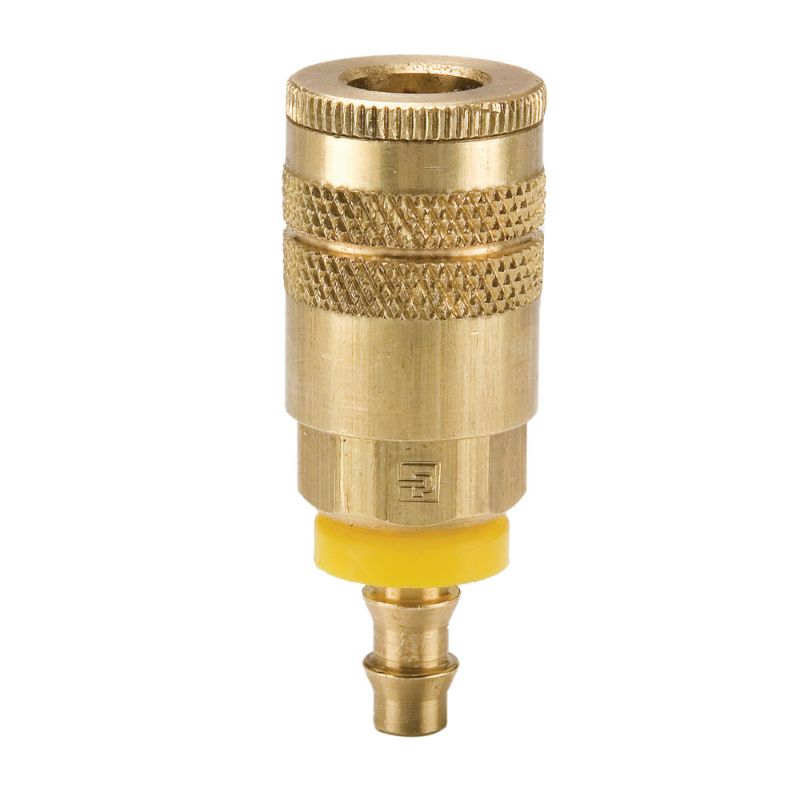

Parker B20-3BP - Industrial Interchange, Manual Connect, Quick Connect Air Couplers - 20 Series

Name: Parker B20-3BP - Industrial Interchange, Manual Connect, Quick Connect Air Couplers - 20 Series
SKU: B20-3BP
Price: 23.32 USD
Availability: InStock

Parker's general purpose, Industrial Interchange pneumatic, air quick connect couplers are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

AFP Availability:

50 In Stock

North Chesterfield, VA	30
Summerville, SC	8
West Knoxville, TN	4
East Knoxville, TN	4
Richmond, VA	2 (Pickup only)
Johnson City, TN	2 (Pickup only)

Partner Available:

605 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. B20-3BP

$23.32/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Minimum Operating Temperature	-40 °F
Plating Type	na	Application	Air
Specifications Met	Connects with A-A-59439 (MIL-C-4109F, ISO 6150-B	Seal Material	Nitrile
Maximum Operating Pressure	300 psi	Coupling Half	Coupler
Valve Type	Tubular	Dimensional Weight	0.026658673061550762 lb
Division	Quick Coupling Division	Maximum Operating Temperature	250 °F
Sleeve Type	Manual	Media	Low pressure fluids and compressed air
Lock Type	Locking balls	Body Material	Brass
Body Material	BRASS	Body Size (inch)	1/4
Connection Thread Size (inch)	na	Connection Type	Push-Lok hose barb
Thread Style	na	Connection Hose I.D. (inch)	1/4

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
