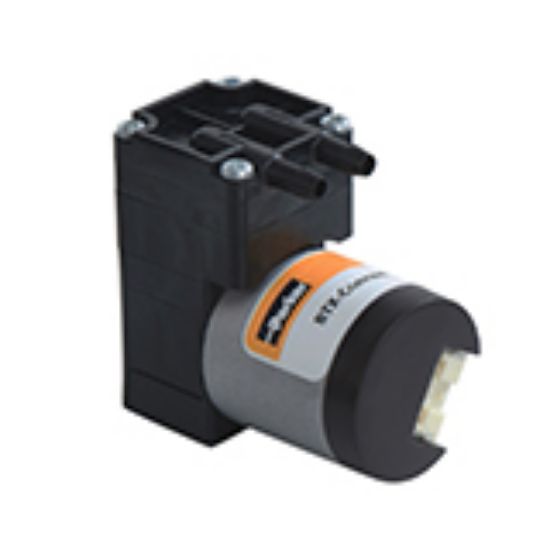

Parker B1C-090V12AN-01 - BTX Single and Dual Head Miniature Diaphragm Pump (Gas)

BTX Single and Dual Head Miniature Diaphragm Pumps (gas) Up to 11 LPM Free Flow

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. B1C-090V12AN-01

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
For Fluid Type	Air	Height	2.15 inch
Operating Temperature	5 to 50 °C	Division	Precision Fluidics Division
Weight	125 g	Flow Rate	5.8 L/min
Body Material	PBT	Product Type	Diaphragm Pump
Width	1.18 inch	Length	56.5 mm
Motor Type	Brushless DC	Noise Level	45 dBA
Operational Life	15000 Hours	Diaphragm Material	AEPDM
Industry Application	Gas Generator	Maximum Continuous Pressure	n/a bar
Maximum Outlet Pressure Rating	n/a bar	Maximum Continuous Vacuum Pressure	-533 mm-Hg
Operating Pressure	n/a bar	Vacuum Pressure Rating	-533 mm-Hg
Pump Size	Single Head	Pump Type	Vacuum
Motor Option	Brushless DC	Input Voltage	12
Free Flow Rate	Up to 5.8 L/min	Operational Life	15,000 hr
Motor Control Option	UART Speed Control
